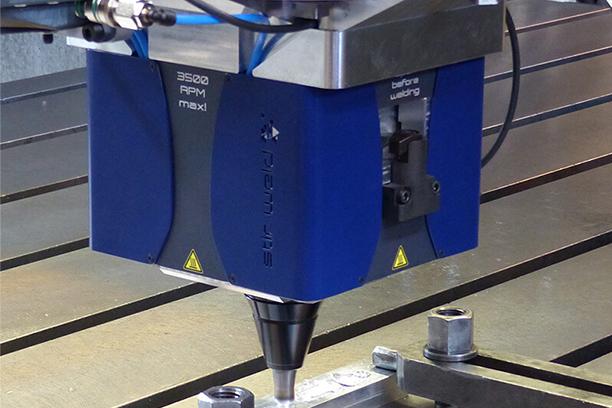

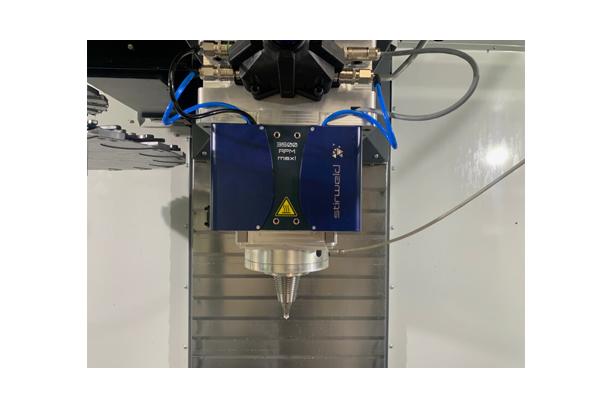

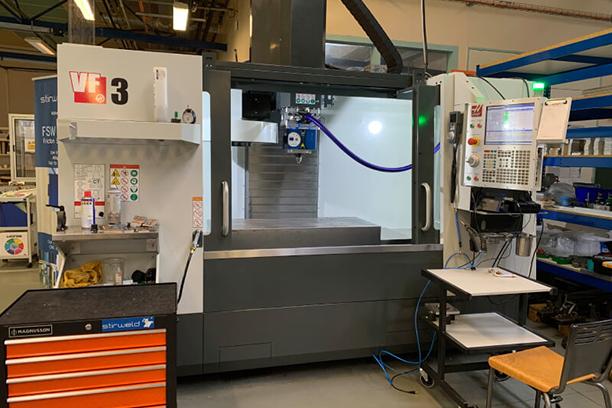

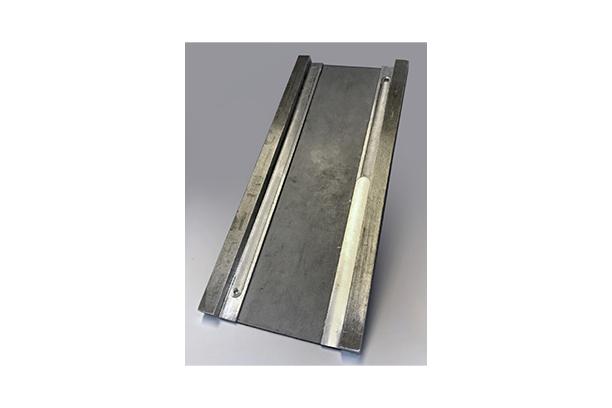

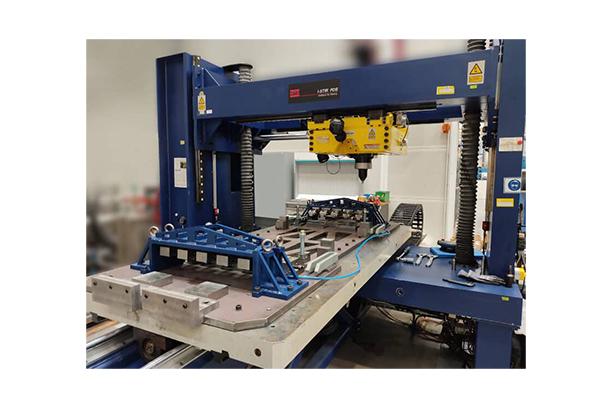

FSW Head for CNC machines 3, 4 or 5 axes Our FSW head can weld from existing CNC machine tools, whether it is a 3, 4 or 5-axis machine. The Stirweld FSW head brings the FSW welding functions to the machining center: force control and recording, cooling, protection of the spindle against loads and vibrations. The offer of this equipment highly reduces the investment cost of an FSW machine while offering the same performance as a special FSW machine.
|
 |
FSW STANDARD HEAD ADVANTAGES
Low investment cost
-compared to FSW special machines or robotic stations
Adaptability
-Despite the lack of standard machining centers, the StirWeld FSW head can be adapted to all CNCs.
Easy to install and to use
-After the first installation, the user can assemble and disassemble the FSW head in few minutes from machining to welding and vice versa.
FSW solutions
-The Stirweld FSW head offers many advantages among which low investiment cost and high customer support.
Here you can see a clear comparison with the other options on the market:

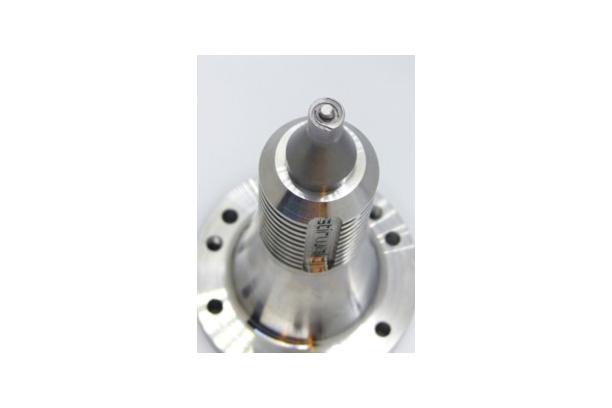

Technical sheet FSW Head
-Compliant part : height of 300 mm
-Interface : height from 60 to 110 mm depending on CNC machine
-Weight : 30 Kg
-Air pressure cooling : 3 bars
-Water cooling : 5 l/min at 25°C
-Head : console distance up to 10m (more in option)

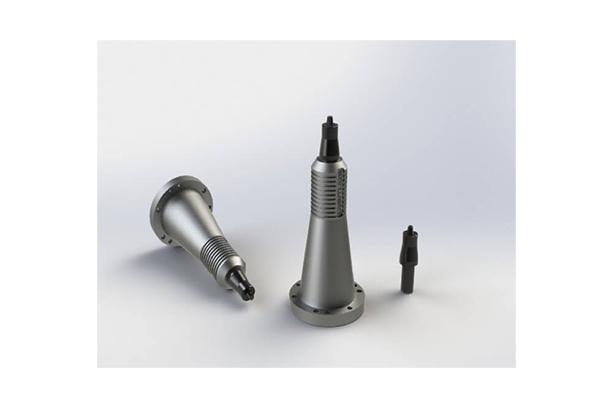

FSW Stirweld Head features
-Fitting on 3, 4 or 5 axis CNC machine
-Plug or unplung in 15 mins
-No hard or soft change of CNC machine
-Force control to secure the weld quality from 1 to 18 kN
-Water and air pressure cooling
-From welding to machining without head disassembly

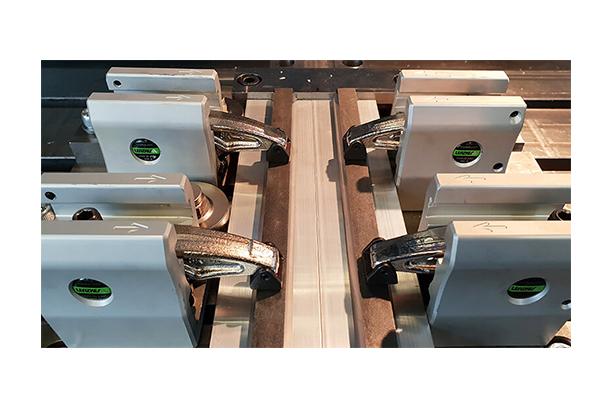

-Small size to accomodate welding jig
-Self-lubricating: no maintenance
-CNC machine protection against the high forces (up to 18 kN) and vibrations during the FSW process

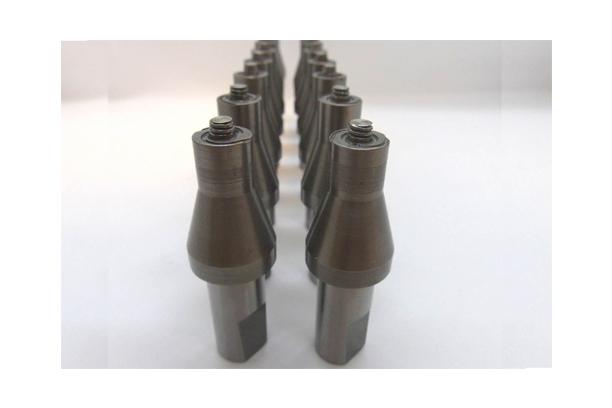

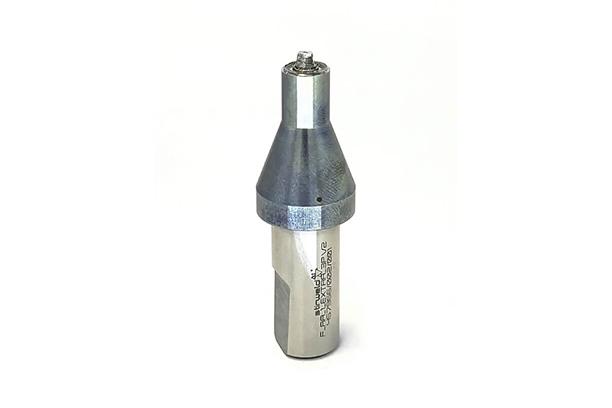

-Quick tool change (attachment with accurate positioning)
By adding 4 functions to your CNC machine, it will be able to produce quality friction stir welded parts.
Control Panel
-Recording of forging force for quality control
-Temperature monitoring for safe use
-Real time display process ajustment or process control
|

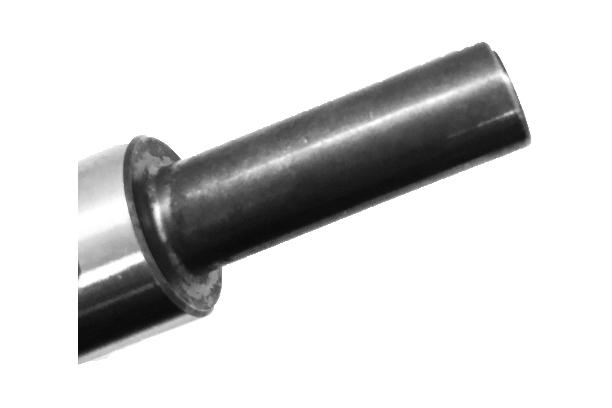

Continuous innovation The Stirweld team puts a lot of effort in R&D and has recently achieved a newversion of Stirweld FSW head: codename « Cleansky ». The main advantage of this new head is its retractable pin, which avoids leaving a hole at the end of the FSW welding process. The project leading to this application has received funding from the Clean Sky 2 Joint Undertaking under the European Union’s Horizon 2020 research and innovation program under grant agreement No 831833.
|
 |
|
FSW Training The training offered by StirWeld is both theoretical and practical. Lasting 3 days on your site, the Stirweld training will give you the necessary skills for FSW welding operations. Types of welding cases: -lap welding -butt welding The training can be adapted according to the application that you wish to carry out. |
 |
