product Image

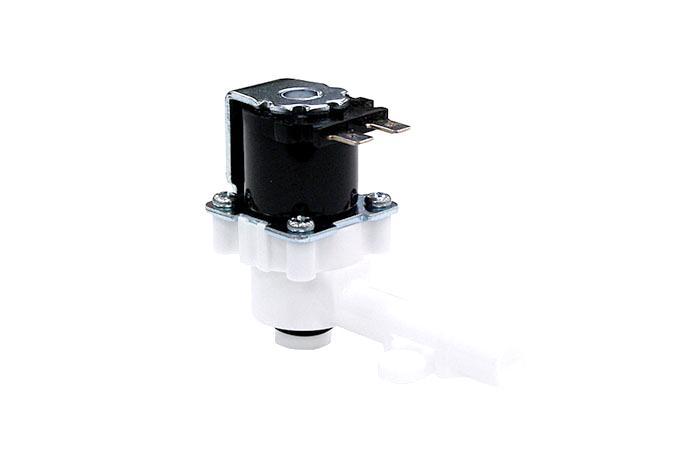

Solenoid Valve
Model Name
LSV-CK
Series
Solenoid Valve
Data
-
Manufacturer information
provider logo
STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Problem with product info?
Update request
Manufacturer
STORMTEC
Brand
-
SKU
35877
Product Name
Solenoid Valve
Model Name
LSV-CK
Size
-
Weight
-
Product Details
WORKING PRESSURE RATED VOLTAGE TOLERANCE
0~70cm H2O DC 12, 24V -15~+10 %
INLET PORT OUTLET PORT PACKAGE 1 BOX
12.0mm 12.0mm 100EA



GENERAL SPECIFICATION

The low pressure solenoid valve (LSV) is the direct operating type solenoid valve which is suitable for automatic
water feeding system outlet spot.
Recently, this valve is widely used in potable water appliances such as water purifier, refrigerator and vending machine.

WORKING PRESSURE

0~70cm H2O

RATED VOLTAGE

DC 12V, 24V

TOLERANCE

-15~+10%

HYDRAULIC PRESSURE

19.5bar (277psi)

DUTY TIME

Continuous

WORKING TEMPERATURE

0~98℃ (32~208℉)

AMBIENT TEMPERATURE

Less than 104℉

WIRE INSULATION TYPE

E2UEW (248℃ Urethane Enamel Wire)

VALVE CONSTRUCTION

Direct operating type poppet

COIL TEMPERATUREINCREASING

Less than 176℉ in a rated voltage



APPLICATION

Water purifier, Vending machine,  Refrigerator, Water ionizer



STORMTEC
Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more
The Stormtec has been manufacturing and developing various range of potable appliance components and has been supplied high-quality products to the world water purification industry since its foundation in 1999. From its humble beginning of business, we do our best to provide the high quality goods. Now, it has since grown to have more than 100 employees serving the international market for fittings, faucets, valves for water purifier and other home appliances. Even though we grow up and adopt the automatic manufacturing system, we haven’t given up the first priority, the Quality. We promise providing the finest products to all customers. You are the first. Our success is behind yours.
