■ Specification
|

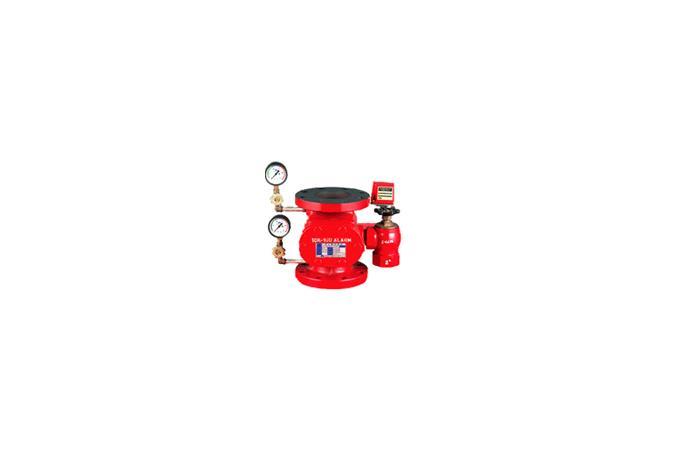

ALARM CHECK VALVE |
||
SAV-71 |
SAV-72 |
||
WORKING PRESSURE |
1.5kg/cm²~10kg/cm² |
1.5kg/cm²~10kg/cm² |
|
APPLICABLE TEMPERATURE |
5~80℃ |
||
INSTALLATION METHOD |
종형(Vertical) |
||
MIN. OPERATION PRESSURE |
1.5kg/cm² |
||
CONNECTION METHOD |
KS 10K FF Flange |
KS 16K FF Flange |
|
HYDRO. TEST PRESSURE |
20kg/cm²-2min |
32kg/cm²-2min |
|
METERIALS |
BODY, COVER |
GC 200 |
GCD 450 |
SEAT RING |
BC 6 |
||
DISC RUBBER |
N.B.R |
■ Dimension
PRESSURE |
SIZE |
SPACE |
VALVE FLANGE |
Weight |
|||||||||
L |
L1 |
L2 |
L3 |
L4 |
L5 |
H |
P.C.D |
øD |
t |
n-øh |
|||
10K |
65 |
220 |
170 |
185 |
143 |
145 |
160 |
400 |
140 |
175 |
22 |
4-19 |
19 |
80 |
220 |
170 |
185 |
145 |
145 |
160 |
400 |
150 |
185 |
22 |
8-19 |
21 |
|
100 |
240 |
180 |
200 |
160 |
155 |
175 |
420 |
175 |
210 |
24 |
8-19 |
31 |
|
125 |
260 |
210 |
240 |
200 |
175 |
190 |
420 |
210 |
250 |
24 |
8-23 |
36 |
|
150 |
280 |
220 |
270 |
210 |
190 |
206 |
440 |
240 |
280 |
26 |
8-23 |
49 |
|
16KA |
80 |
224 |
170 |
185 |
145 |
145 |
160 |
400 |
160 |
200 |
24 |
8-23 |
25 |
100 |
246 |
180 |
200 |
160 |
155 |
175 |
420 |
185 |
225 |
26 |
8-23 |
33 |
|
125 |
265 |
210 |
240 |
200 |
175 |
190 |
420 |
225 |
270 |
26 |
8-25 |
38 |
|
150 |
285 |
230 |
270 |
210 |
190 |
206 |
440 |
260 |
305 |
28 |
12-25 |
51 |
