■ Specification
구분 |

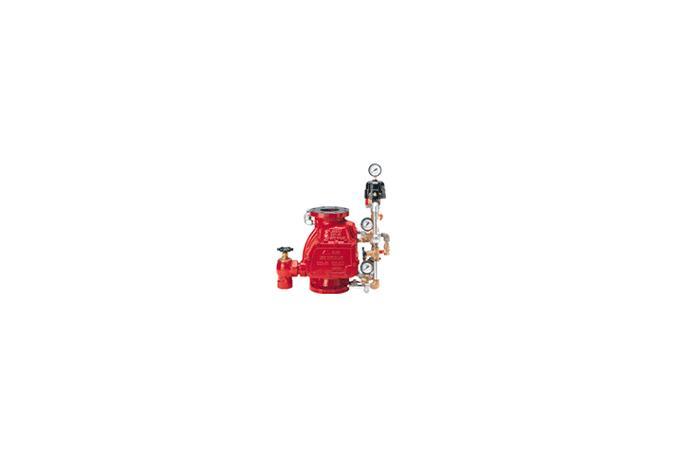

DRY PIPE VALVE |
|
SDP-73 |
||
WORKING PRESSURE |
1.5~10kg/cm²( Max. 14kg/cm²) |
|
APPLICABLE TEMPERATURE |
5~80℃ |
|
INSTALLATION METHOD |
종형(Vertical) |
|
MIN. OPERATION PRESSURE |
1.5kg/cm² |
|
CONNECTION METHOD |
KS 10K FF Flange |
|
HYDRO. TEST PRESSURE |
20kg/cm²-2min |
|
METERIALS |
BODY |
GC 200 |
SEAT RING |
BC 6 |
|
DISC RUBBER |
N.B.R |
■ Dimension
SIZE |
SPACE |
VALVE FLANGE |
Weight |
||||||||||||
L |
A |
B |
C |
D |
E |
F |
G |
H |
H1 |
P.C.D |
D |
t |
n-øh |
||
100 |
406 |
280 |
333 |
195 |
308 |
240 |
273 |
180 |
655 |
73 |
175 |
210 |
24 |
8-19 |
58 |
150 |
482 |
325 |
354 |
202 |
323 |
280 |
283 |
240 |
680 |
73 |
240 |
280 |
26 |
8-23 |
103 |
