멀티 스파크 테스터
Model Name
-
Series
제품소개
Data
-
Manufacturer information
provider logo
Sungmin Instruments

Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment

Problem with product info?
Update request
Manufacturer
Sungmin Instruments
Brand
-
SKU
36983
Product Name
멀티 스파크 테스터
Model Name
-
Size
-
Weight
-
Product Details

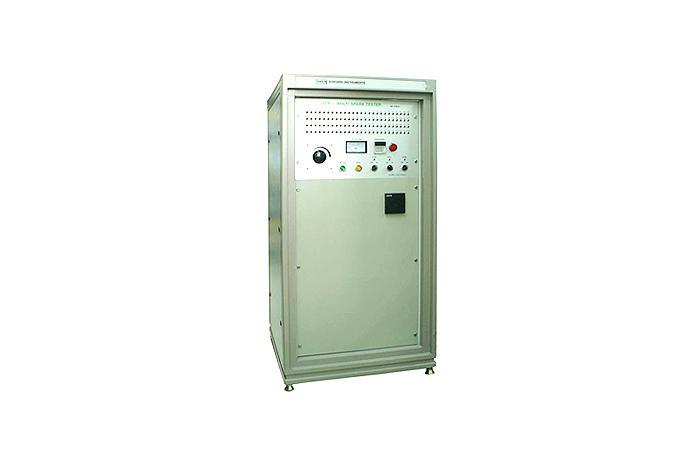

성민전기 멀티 스파크 테스터

 제품개요
 SM-3100ST는 통신선 공장의 집합기에 설치하는 Tester로써 100Pair 또는 200Pair 집합 직전에 설치되어 집합직전의 Pin Hole 및 단선을 검출하는데 사용한다.
이 Tester는 100개 또는 200개의 Line을 동시에 Check 하고 있다가 어느 한가닥만 불량이라도 검출하여 검출된 Line을 알려주며 기계를 정지시킨다. 정지 후 Local Tester로 그 지점을 찾아 수리할 수 있다.



제품특징
출력전압 : DC 0~3KV
전압표시 : 3Digits LED 3 1/2 0~3.5KVDC. Accuracy ±2% of full scale.
불량표시 : 4Digits Counter. 104EA LED lamp 또는 208EA LED
불량응답속도 : 25Milliseconds.
Output Control : Relay contacts rated at 10ampers. Stop delay counter.
전원 : 100/200/220VAC 50/60Hz Single phase 1KVA


Sungmin Instruments
Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment
SungMin Instrument is the world’s largest cable tester and facility maker. Since our establishment in 1988, we have been making steady efforts in R&D of essential technologies.  We have successfully implemented a comprehensive system covering the entire process from design of electrical, electronic and high precision machines to production. We then supply the final products to domestic and foreign cable companies.  We are proud and confident about our development efforts for cable testers and manufacturing facilities.  Through our consistent quality improvement and management, we have earned the faith of our partners. SungMin Instrument has proven our commitment to quality through many years of technological innovation, and our perseverance and efforts translate into customer trust.  Amidst the drastically changing world market, our long term vision and perfect management will help us keep growing as a great company.
