AC Spark Tester
Model Name
SM-ST-Series
Series
Cable Instruments
Data
-
Manufacturer information
provider logo
Sungmin Instruments

Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment

Problem with product info?
Update request
Manufacturer
Sungmin Instruments
Brand
-
SKU
37005
Product Name
AC Spark Tester
Model Name
SM-ST-Series
Size
-
Weight
-
Product Details

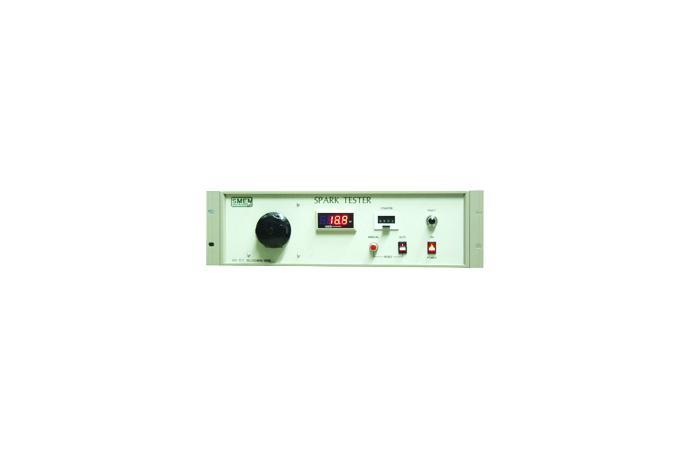

Sungmin Instruments AC Spark Tester SM-ST-Series

Installed in a cable manufacturing line, an AC SPARK TESTER is a general tester that has been used for several decades to detect bad insulation. It is a very general tester used to find the location of sparks resulting from the wire’s spiral, pinhole, dents, and alien substances.

Depending on the exterior appearance, it can be classified into three types.

1) Control separation type - The Detector and the Control Unit are separately installed.
You can install the Control Unit in the controller or near the workers for use.

2) Integrated compact type - The Detector and the Control Unit are integrated as one unit.
Great exterior appearance and compact size. Can support safe use of up to 30,000V.

3) Extra-large integration type - Extra-large size. Supports safe use in the ultra-high voltage cable of up to 40,000V.

  Product Specs

Model Name Product Size Applicable Cable Diameter Test Voltage Electrode Length
SM-15ST40 500X300X1170 20mm 15KV 50/60Hz 350mm
SM-15ST80 600X480X1250 40mm 15KV 50/60Hz 250mm
SM-15S120 600X480X1250 80mm 15KV 50/60Hz 250mm
SM-15ST180 800X600X1250 150mm 15KV 50/60Hz 250mm
SM-30ST80 600X480X1250 40mm 30KV 50/60Hz 250mm
SM-30ST120 600X480X1250 80mm 30KV 50/60Hz 240mm
SM-30ST180 800X650X1350 150mm 30KV 50/60Hz 240mm
SM-40ST120 800X650X1350 80mm 50KV 50/60Hz 220mm
SM-40ST-180 800X650X1350 150mm 50KV 50/60Hz 220mm
SM-40ST-300 800X800X600 150mm 50KV 50/60Hz 300mm
SM-15ST-20 300X170X250 10mm 15KV 50/60Hz 80mm
