Product Name
Cable Surface Treatment
Model Name
CM-200/400/GAS
Size
-
Weight
-
Product Details

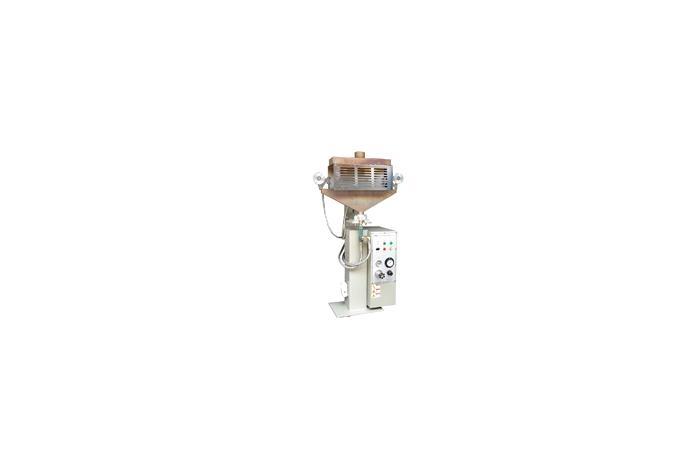

Sungmin Instruments Cable Surface Treatment CM-200/400/GAS

CM-200
Corona Master is composed of a high frequency generator and electrode unit.
The electrode initiates corona discharging with the peeled off cables by supplying high frequency, high voltage. As a result, the coating surface
(PE, PVC, TEFLON, HDPE, or LDPE) is activated to improve the adhesion power in the second process-printing and adhesion.

Sungmin Instruments Cable Surface Treatment CM-200/400/GAS 1

CABLE SULFOS TREMENT There are two types available - Electric Corona Discharging type and Gas Plasma type.
Gas Corona type uses a mixture of air and gas.
Compared to the Electric Corona Discharging type, it has better surface activation effects.


Product Specs

MODEL CM-200 CM-400 CM-GAS
Output frequency 20 ~25Kkz 20 ~25KHz Gas flame
Capacity 1 KVA 3 KVA 1000℃
Output voltage 5 ~12KV 3 ~10KV
Electrode 220mm 800mm 260mm Burner
Supply Cable Printing Sheet/Film Adhesive Printing Cable Printing
Size 500X1425X620 600X1200X650
Power supply 220VAC 50/60Hz 1 Phase
Sungmin Instruments
Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment
SungMin Instrument is the world’s largest cable tester and facility maker. Since our establishment in 1988, we have been making steady efforts in R&D of essential technologies.  We have successfully implemented a comprehensive system covering the entire process from design of electrical, electronic and high precision machines to production. We then supply the final products to domestic and foreign cable companies.  We are proud and confident about our development efforts for cable testers and manufacturing facilities.  Through our consistent quality improvement and management, we have earned the faith of our partners. SungMin Instrument has proven our commitment to quality through many years of technological innovation, and our perseverance and efforts translate into customer trust.  Amidst the drastically changing world market, our long term vision and perfect management will help us keep growing as a great company.
