Product Name
Inverter Preheater
Model Name
HP-Series
Size
-
Weight
-
Product Details

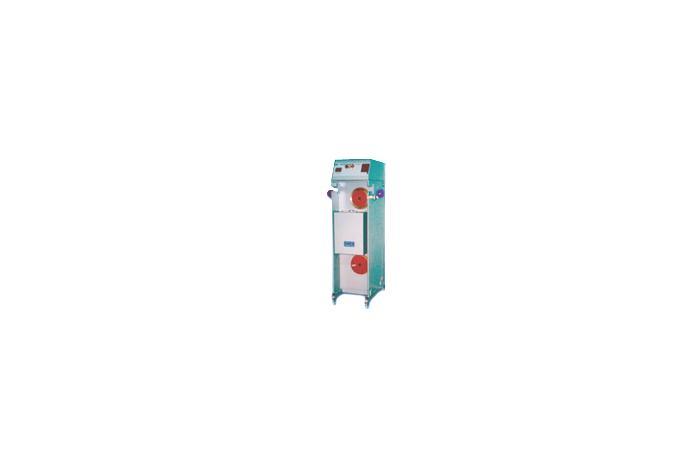

Sungmin Instruments Inverter Preheater HP-Series

HP-180P24
During extrusion work for steel or non-steel sheath peeling, this HP Series Inverter Preheater can greatly improve quality and productivity.
Applicable cables include: thin wires with high resistivity and high speed cable extrusion (preheating conductors).
When you peel off sheaths of steel or nickel wire or steel net wire, you need a preheater with high performance: the HP Series Inverter Preheater is the perfect solution.

Sungmin Instruments Inverter Preheater HP-Series 1

HP-220P48
When you need preheating at 150 degrees on copper wires with a diameter of 2.5mm or less and the line speed is within the range of 500mpm~1500mpm, you need to choose an Inverter Preheater.
Depending on the cable type, you can save up to 20 types of work characteristics and you can also preheat at a consistent temperature.
The menus to be set: offset, Slope Value, Point to the output, Decel. Time, Accel. Time and more.


Product Specs

MODEL HP-12070CAP HP-180P24 HP-220P24 HP-220P48 HP-300P48
Pulley 120mm*3150mm*1 HP-180P24 HP-220P24 HP-220P48 HP-300P48
Wire size STEEL,CU,SOLID, STRAND
0. 2 ~ 1.5mm 0.5 ~ 3mm 0.8 ~ 4.5mm
Wire temp.Setting range 0 ~ 299 ℃
Capacity 220V 25KVA 220V 7KVA 220V 7KVA 220V 15KVA 220V 15KVA
Work frequency 1000Hz
Remotr control 0 ~ 10V DC INPUT
Capstan motor Servo motor control
Work volt 0 ~ 7V 0 ~ 24V 0 ~ 24V 0 ~ 35V 0 ~ 48V
Power supply 220/380VAC, 3Phase, 50/60Hz
Steel/Line speed Steel/1200 Steel/500 Steel/300 Steel/500 Steel/1000
CU/Line speed CU/2500 CU/100 CU/700 CU/1000 CU/2000
