Display Unit
Model Name
-
Size
-
Weight
-
Product Details

Sungmin Instruments Display Unit

1204AC

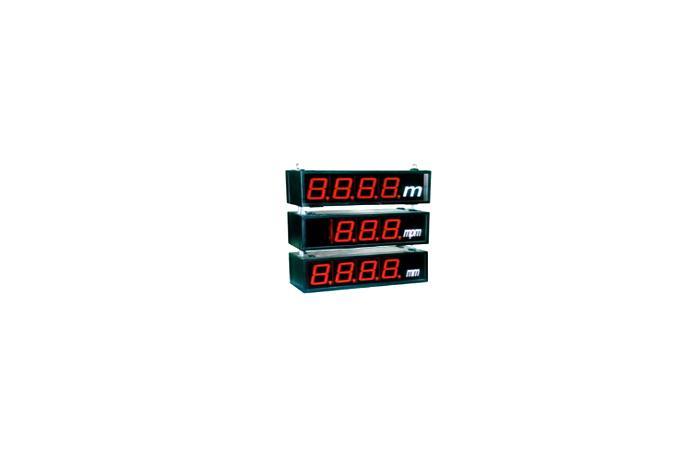

The display unit is a device used to help you see important figures from far away.
These figures include Count, Speed, RPM, Diameter, and Temperature, which workers need to frequently check during their work.
This tool helps improve workability and productivity.

Sungmin Instruments Display Unit  1

1204BCSD
The display unit is a device used to help you see important figures from far away.
These figures include Count, Speed, RPM, Diameter, and Temperature, which workers need to frequently check during their work.
This tool helps improve workability and productivity.

Sungmin Instruments Display Unit  2

1505AC

Sungmin Instruments Display Unit  3

1505BCS
The display unit is a device used to help you see important figures from far away.
These figures include Count, Speed, RPM, Diameter, and Temperature, which workers need to frequently check during their work.
This tool helps improve workability and productivity.


Product Specs

MODEL DISPLAY FUNCTION INPUT SIZE (WXHXD)mm 7SEGMENT LED(mm)
D M D-100 Communication display RS-232C Communication 96X48X113 8X14.1
1204A 4inch4. One-side Counter Open collector,Pulse 490X170X180 60X100
1204B 4inch4. Two-side Counter Open collector,Pulse 490X170X200 60X100
1204BS 4inch4. Two-side Speed meter Open collector,Pulse 490X170X200 60X100
1204BT 4inch4. Two-side Temperature Thermocouple K.J.R.F.T.S.N 490X170X200 60X100
1204BD 4inch4. Two-side Speed meter RS-232C Communication 490X170X200 60X100
1205BR 4inch4. Two-side RPM meter Open collector,Pulse 490X170X200 60X100
1505A 6inch5. One-side Counter Open collector,Pulse 780X355X200 80X120
1505B 6inch5. Two-side Counter Open collector,Pulse 780X355X230 80X120
1505B S.T.D.R Count. Speed,Temperatue Diameter, RPM   780X355X230 80X120
