product Image
Tensile Tester
Model Name
-
Series
Cable Test Systems
Data
-
Manufacturer information
provider logo
Sungmin Instruments

Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment

Problem with product info?
Update request
Manufacturer
Sungmin Instruments
Brand
-
SKU
37024
Product Name
Tensile Tester
Model Name
-
Size
-
Weight
-
Product Details

Sungmin Instruments Tensile Tester

TENSILE TESTING MACHINE(SM-TTM-500K PC)


Model SM TTM-500K-PC
Loading and market indication Digital operating and display
Max 500kgf
Resolution 1/10000
Precision ± 0.5%
Crosshead stroke 600mm
Crosshead speed 1 ~500mm/min
Size 700 x 550 x 1800
Power 220VAC 50/60Hz 1Phase



TENSILE TESTING MACHINE(SM-TTM-500K PC)

Sungmin Instruments Tensile Tester  1





Sungmin Instruments Tensile Tester  2

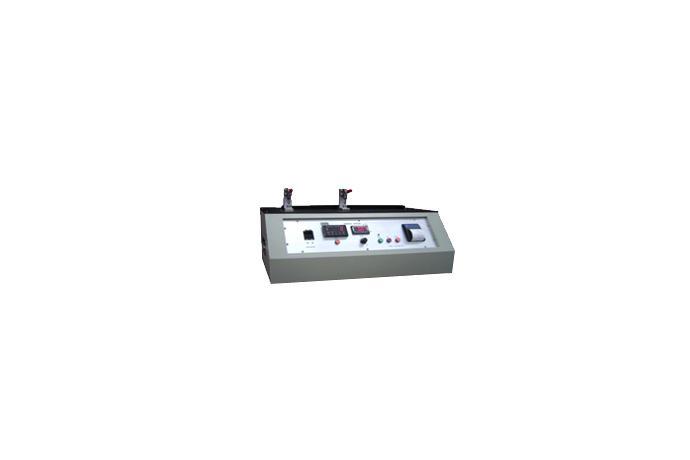

STRIP FORCE TESTER(SM-SPT01)


Model SM-SPT01
Maximum load 500N
Test method Motor
Test stroke MAX. 200mm
Test speed 300mpm
Speed control Viable speed and volume
Motor AC Geared Motor 25W
Counter Digital indicator mounted
Power 220V 50Hz 1Phase



Sungmin Instruments Tensile Tester  3

MICRO TENSILE TESTING MACHINE(SM-TT1K-P)


Model SM-TT500 SM-TT1K
Test speed 500N
Test amount 500g (Max) 1kg (Max)
Moving speed 0~450mm/Min
Distance 250mm (At point of start)
Driving method Motor
Power supply AC220V 50/60Hz 1Phase
Elongation indication (%) Digital Indicator
Internal dimension 720(W) x 260(D) x 270(H)
Printer Elongation (%), date, and time
Sungmin Instruments
Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment
SungMin Instrument is the world’s largest cable tester and facility maker. Since our establishment in 1988, we have been making steady efforts in R&D of essential technologies.  We have successfully implemented a comprehensive system covering the entire process from design of electrical, electronic and high precision machines to production. We then supply the final products to domestic and foreign cable companies.  We are proud and confident about our development efforts for cable testers and manufacturing facilities.  Through our consistent quality improvement and management, we have earned the faith of our partners. SungMin Instrument has proven our commitment to quality through many years of technological innovation, and our perseverance and efforts translate into customer trust.  Amidst the drastically changing world market, our long term vision and perfect management will help us keep growing as a great company.
