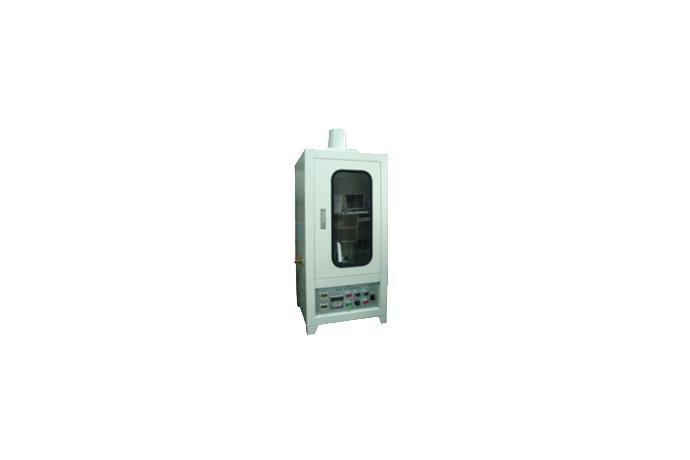

product Image
Flame Resistance Tester
Model Name
SM-1581/851
Series
Cable Fire Testers
Data
-
Manufacturer information
provider logo
Sungmin Instruments

Measurement tester about cable, High frequency spark tester, AC spark tester, Laser external diameter measuring equipment

Problem with product info?
Update request
Manufacturer
Sungmin Instruments
Brand
-
SKU
37030
Product Name
Flame Resistance Tester
Model Name
SM-1581/851
Size
-
Weight
-
Product Details

Sungmin Instruments Flame Resistance Tester SM-1581/851

This tester is used to test non-flammability of textile, wires, rubber, and synthetic resin. You can freely move a sample holder with a timer that can time the duration of flame.
It is safely designed and manufactured in accordance with the IEC 60332 & UL 1581 specs.
The IEC 60332 has a low meter installed to adjust the amount of gas/air supply.


Model SM-1581 SM-851
Related standards UL 1581 IEC 60332-1
Sample support Vertical and horizontal sample support Vertical and gripper mounted type
Spark ignition angle 20° 45°±2(Slide Type)
Ignition type Automatic ignition Automatic ignition
Extinguishment type Timer setting/auto extinguishment
15 second ignition, 15 second off
Attachment of repetitive ignition setting counter
Timer setting
Flow control Flame length control GAS: 0-25l/min?Requlator control
AIR : 0-100cc/min-Requlator control
Burner LPG GAS Bunsen Burner Advance-mixed burner
(IEC 60695-2-4-1 standards)
Internal size of sample box 305 x 610 x 355 300 x 450 x 1200 ± 25mm
Product size 400 x 500 x 1300 1600 x 730 x 2100
Power supply 220VAC 50/60Hz 1Phase 220VAC 50/60Hz 1Phase
