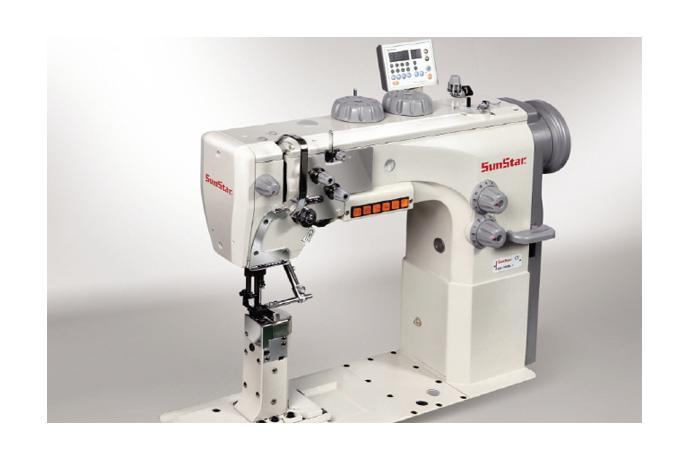

Semi-direct drive, post bed, 1/2-needles, unison feed, lock stitch sewing machine with horizontal large hook and automatic thread trimmer.
Specifications
Model | Application | Max. sewing speed [spm] | Stitch length [mm] | Needle | Lubrication | Auto thread trimming | Motor | Lift of the presser foot [mm] | Hook | ||||
Hand | Knee | Auto | Drive type | Position | Size | ||||||||
KM-1180BL | Medium~Heavy | 2,000 | 0~12 | DPx35 (#12~#23), 134-35 (Nm80~160) | Auto | No | Clutch motor | 12 | Rotary | Horizontal | 1.6 | ||
KM-1180BL-7 | Medium~Heavy | 2,500 | 0~12 | DPx35 (#12~#23), 134-35 (Nm80~160) | Auto | Yes | Servo motor(Semi-direct) | 12 | 20 | Rotary | Horizontal | 1.6 | |
KM-1180BLH | Extra heavy | 1,800 | 0~12 | DPx35 (#22~#25), 134-35 (Nm140~200) | Auto | No | Servo motor(Semi-direct) | 12 | 20 | Rotary | Horizontal | 1.6 | |
KM-1182BL | Medium~Heavy | 2,500 | 0~12 | DPx35 (#12~#23), 134-35 (Nm80~160) | Auto | No | Servo motor(Semi-direct) | 12 | Rotary | Horizontal | 1.6 | ||
KM-1182BL-7 | Medium~Heavy | 2,500 | 0~12 | DPx35 (#12~#23), 134-35 (Nm80~160) | Auto | Yes | Servo motor(Semi-direct) | 12 | 20 | Rotary | Horizontal | 1.6 | |
KM-1182BLH | Extra heavy | 1,800 | 0~12 | DPx35 (#22~#25), 134-35 (Nm140~200) | Auto | No | Servo motor(Semi-direct) | 12 | 20 | Rotary | Horizontal | 1.6 |
