Manufacturer
SWIKO
Brand
-
SKU
129862
Product Name

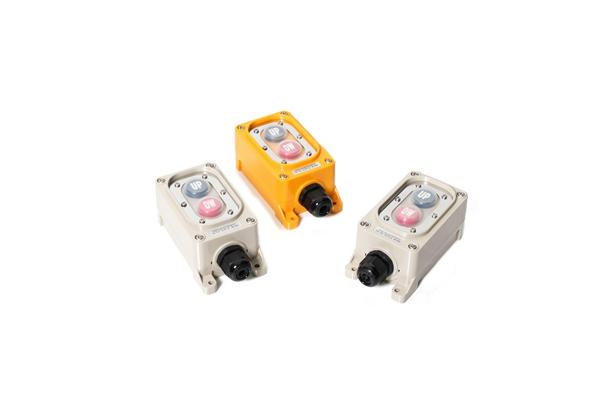

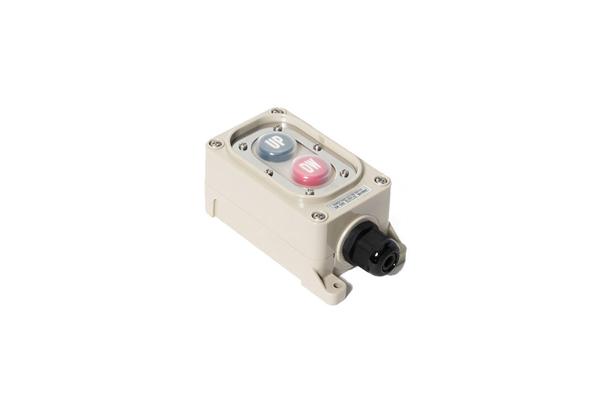

Wing-body Switch
Model Name
SW-50B, SW-50D
Size
-
Weight
-
Product Details
| 브랜드 | 스위코 |
|---|---|
| 정격 | 6A 250VAC |
| 접점 | AgSnO2 |
| 절연저항 | 100㏁ 이상(min) |
특징 (Features)
1. 방우형 구조이며 일반 자동화 기계 상,하 개폐 동작으로 사용 할 수 있습니다.
2. 접점 블록은 1a-1a, 2a-2a 기본으로 설계 되었습니다.
3. 방우형 구조로 설계되어 연직 60도 범위에서 유해 영향없이 안전하게 사용 가능
성능 (Specification)
| 항목(List) | 윙바디 스위치(Wing-body switch) |
|---|---|
| 정격(Rating) | 6A 250VAC |
| 접점(Contact) | AgSnO2 |
| 절연저항(Insulation resistance) | 100㏁ 이상(min) |
| 내전압(Dielectric strength) | 1,500V AC 1분간(min) |
| 재질(Quality material) | 고충격 ABS(High impact ABS) |
| 사용주의온도(Temperature range) | -15℃ ~ +45℃ |
| 사용주의습도(Humidity range) | 45 ~ 85% RH |
외형 및 도면 (External form & Drawing)
| SW-50B (1a-1a) |
|
| |
| SW-50D (2a-2a) |
|
|
