– 1 port serial communication card
– Supports PCI Express Base Specification v1.1 and v2.0
– The world’s leading 256 byte FIFO
– Communication speed: Up to 921.6kbps
– Supplies 5V or 12V to pin #9
– ±15kV Surge protection

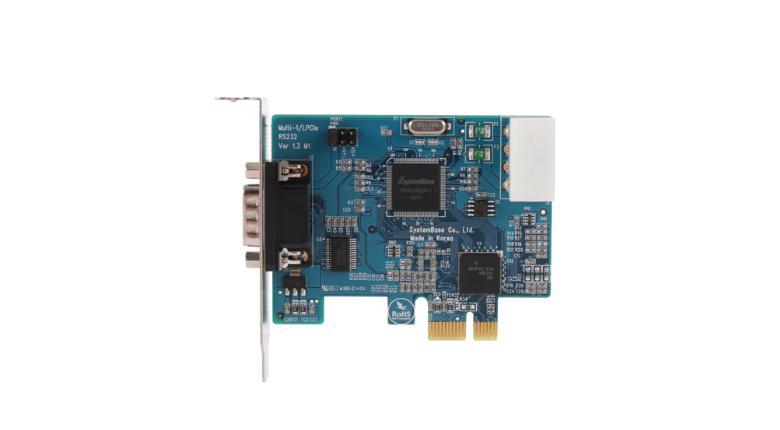

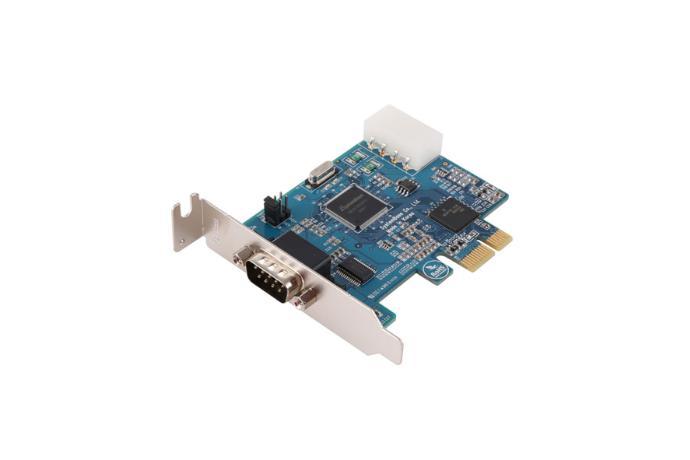

Easily add additional serial ports to your system. The Multi-1/LPCIe is equipped with SystemBase’s powerful semiconductor – S B16C1052PCI, to deliver maximum performance up to 921.6Kbps with the world’s leading 256byte FIFO preventing overrun errors. Combine that with the need for fewer components and you get cost-effective and reliable connections to your serial devices. The Multiport
boards support most Windows and Linux operating systems and include 15,000 volt surge suppression eliminating blown ports. The Multi-1/LPCIe has an on-board DB9 connector and is available in two models, RS232 and RS422/RS485 (Combo). These boards are ideal for POS,
hospitality, factory automation and building automation applications.
Power to the port
The Multi-1/LPCIe is configurable to deliver +5 or +12 volt power to pin 9 to power external devices. This functionality is ideal for connecting low power devices such as barcode readers and receipt printers eliminating the need for an external power supply.
15KV Surge Protection – Built-in:
Don’t risk blown ports and down time. The Multi-1/LPCIe has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.
