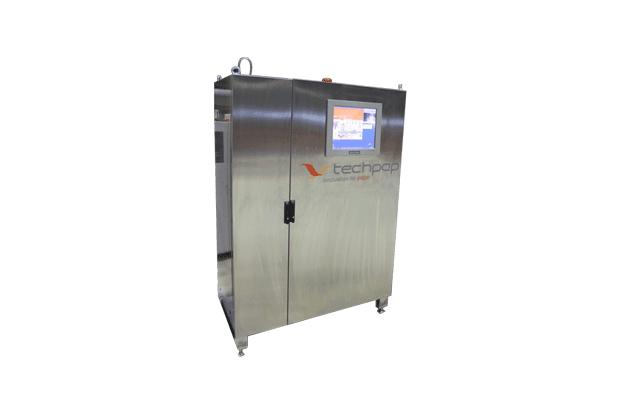

PI - On Line Dirt & Shives analysis module
|
THE DIRT & SHIVES MODULE PERFORM ANALISES THE WHOLE PULP FLOWING THROUGH A MEASURING CELL AND COUNTS ALL IMPURITIES TYPICALLY FOUND IN PULPS AS DIRT DOTS AND SHIVES |
|
|
 |
|
DIRT & SHIVES MODULE This module is based on the well known Simpatic dirt counter developped by CTP. With a resolution from 50μm to 100μ the system takes up to 30 images per seconds with digital IP camera It uses the same sampler as basic Pulp Inspector module |
|
Results The simpatic software perform on the fly analysis to detect all contrasted contaminants in the pulp flow such as:
All those elements are classified by size classes & surface |
|
 |
|
|
|
XTREND INTERFACE Techpap has developped a graphic interface
|
