GENERAL
Optiplex XE3 boasts high performance with 8th Gen CPU, long-term stability from durable materials and extensive scalability from Tool-less design. There are 2 types, Small Form Factor (SFF) type or Mini Tower (MT). Users can select the types upon their needs for configuration. SFF type is for users in needs of small-space-installation. MT type offers users more choices on expansion slots and bays.
KEY FEATURES
- 8th Generation Intel Core i3 / i5 / i7
- DDR4 4GB 2666MHz (up to 32GB)
- SATA III HDD / SSD (up to 2TB)
- Type Approved by ABS, BV, CCS, KR, LR, NK
- IACS UR E10 & IEC60945 approved for a wheel house / bridge installation
- Windows 10 PRO (64-bit)
SPECIFICATION
GENERAL FEATURE | |
Section | Specifications |
CPU | Intel 8th Generation Core i3/i5/i7 |
OS | Windows 10 PRO (64-bit) |
Memory | DDR4 4GB 2666MHz (up to 32GB) |
Chipset | Intel Q370 Chipset |
Storage | SATA HDD/SSD (5400rpm / 7200rpm) up to 2TB |
I/O | 10 x USB : 1 x 3.1 Type-C 5 x 3.1 Type-A (1 front, 4 rear) 4 x 2.0 Type-A (2 front, 2 rear) 1 x RJ 45 2 x DisplayPort 1 x Serial 2 x PS/2 1 x Audio Jack 1 x Line-out Optional: 1 x Video Port (VGA/DP/HDMI 2.0b/USB Type-C alt-mode, USB Add-in-card, Serial Add-in-card |
Graphic | Intel UHD630 |
Networking (LAN) | Intel 1219LM Etherent |
Power Consumption | 300W (PLUS Gold) |
Dimension (PC with kit) | 290mm (H) x 92.6mm (W) x 292mm (D) |
Weight (PC with kit) | 5.26kg |
Environmental factors | Operation Temp : 0℃ to 70℃ Storage Temp : -20℃ to 60℃ Humidity : 0% to 95% |
Certification | ABS, BV, CCS, DNVGL, KR, LR, NK, IEC 60945 |
Optical Drive Device | 8xDVD-ROM 9.5mm ODD (Option) 8xDVD+/-RW 9.5mm ODD (Option) SD Media Card Reader |
Number of Bays (max) | 1x3.5'' or 2x2.5'' HDD 1 internal slime ODD |
Expension Slots | 1 Half Height PCIe x 16 1 Half Height PCIe x 16 (wired x 4) 1M.2 for wireless (22x30mm) 1M.2 for storage (22x80mm / 22x30mm) |
Warranty | 24 months |

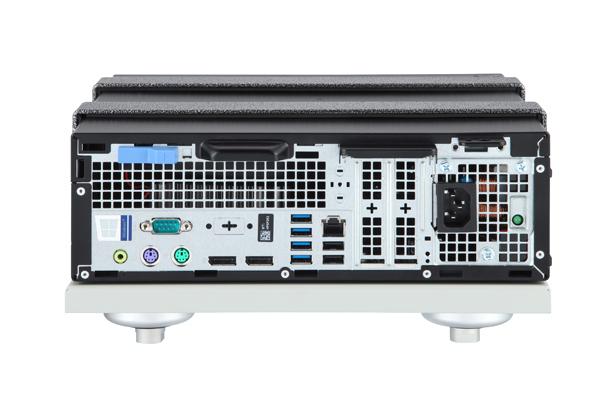

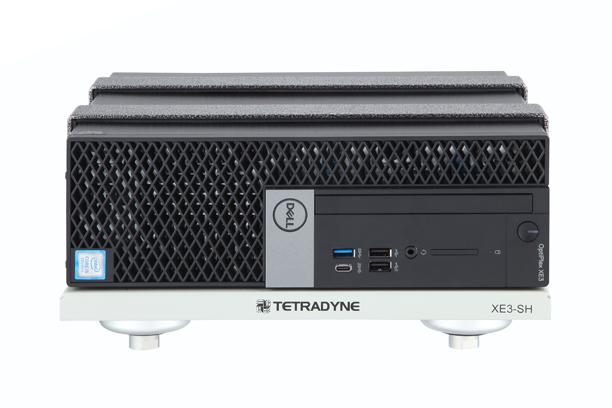

DRAWING
