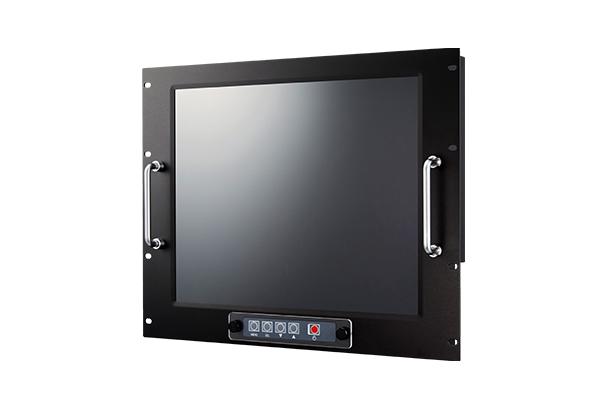

product Image
19 Inch Marine Monitor
Model Name
TIM-190NH
Series
Marine · Offshore
Data
catalog-tetradyne-TIM-190NH
Manufacturer information
provider logo
TETRADYNE

Industrial and Marine monitor manufacturer, TFT LCD Monitor

Problem with product info?
Update request
Manufacturer
TETRADYNE
Brand
-
SKU
124486
Product Name
19 Inch Marine Monitor
Model Name
TIM-190NH
Size
-
Weight
-
Product Details

GENERAL

This specification defines the descriptions for the TIM-190NH TFT LCD Monitor.

TIM series is developed and designed for use in operator display such as Industrial and Marine applications. Marine applications.

TIM-190NH is type-approved by BV, LR, NK.





KEY FEATURES

- Mambrane OSD control

- DVI-D, RGB Input Signal

- Console, Stand (Desktop) Mounting Type

- Aluminum chassis (Front)





SPECIFICATION

GENERAL FEATURE
Section Specifications
Display type LED Backlight, Wide TFT LCD
Viewable Size 19 inch diagonal
Resolution 1280 x 1024 @60Hz
Aspect Ratio 5:4
Brightness 350cd/㎡
Contrast Ratio 1000:1
Response Time 5ms
Active Area 376.320 (H) x 301.060 (V) mm
Pixel Pitch 0.294 (H) x 0.294 (V) mm
Viewable Angle 170°RL / 160°UD
Support Color 16.7M colors
Synchronization Range 31~80 Hz (Horizontal)
55~76Hz (Vertical)
Detectable Resolution 640 x 350, 640 x 480,
720 x 400, 800 x 600,
1024 x 768, 1280 x 1024
Connector Types 1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
Power Specification 110VAC~230VAC 50/60Hz (IEC Standard AC Inlet)
Power Consumption 40W (MAX)
Dimension 483 (W) x 74.5 (D) x 400 (H) mm
Weight 9.39kg
Temperature Range Operating : 0℃ to +50℃
Non-Operating : -20℃ to +60℃
Humidity Range Operating : up to 95%
Non-Operating : up to 95%
Option Dimming : 3~100%
Test Approval IEC 60945, IACS E-10
Certification BV, LR, NK
Warranty 24 months






DRAWING
