Industrial and Marine monitor manufacturer, TFT LCD Monitor
GENERAL

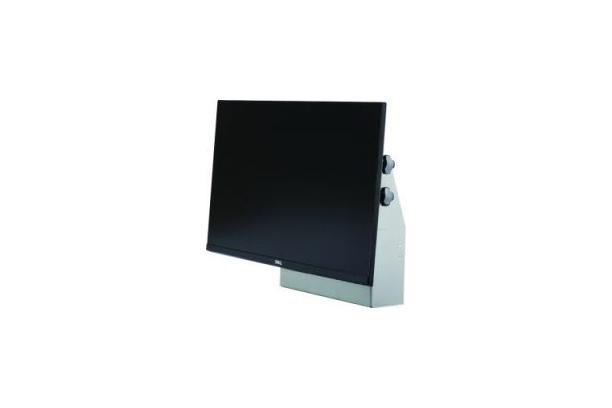

Dell 24 inch LCD monitor, P2419H is type approved for marine usage when it is used in conjunction with a TD Kit, TVK-DM-002. The combination (P2419H + TVK-DM-002) can be used in operator display in various industrial and marine applications.
KEY FEATURES
- Wide viewing angle by IPS pannel : 178/178
- Flicker-free screen with ComportView
- Display Port 1.2, HDMI 1.4, VGA, 2x USB 3.0, 2x USB 2.0
- Under certification by ABS, DNV GL, LR, KR
- IACS E10 & IEC60945 for wheel-house installation
SPECIFICATION
GENERAL FEATURE | |
Section | Specifications |
Display type | Active matrix - TFT LCD |
Viewable Size | 24 inch diagonal |
Resolution | 1920 x 1080 @60Hz |
Aspect Ratio | 16 : 9 |
Brightness | 250cd/㎡ |
Contrast Ratio | 1000 : 1 |
Response Time | 8 ms |
Active Area | 296.46 (H) x 527.04 (W) mm |
Pixel Pitch | 0.275 (H) x 0.275 (V) mm |
Viewable Angle | 178° RL / 178° UD |
Support Color | 16.7M colors |
Synchronization Range | 30 ~ 83 Hz (Horizontal) 56 ~ 76 Hz (Vertical) |
Connector Types | 1 x DP 1 x HDMI 1 x VGA 1 x USB 3.0 port (Upstream) 2 x USB 3.0 port (Side) 2 x USB 2.0 port (Bottom) |
Power Specification | 100 ~ 240 VAC 50/60Hz 1.5A |
Power Consumption | 42W (MAX) |
Dimension (Kit mounted) | 537. 8 (W) x 378 (H) x 166 (D) mm |
Weight (Kit mounted) | 5.5kg |
Temperature Range | Operating : 0℃ ~ + 55℃ Non-Operating : -20℃ ~ + 60℃ |
Humidity Range | Operating : up to 90% Non-Operating : up to 90% |
Certification | ABS, BV, CCS, DNV GL, KR, LR, NK |
Warranty | 36 months |
DRAWING
