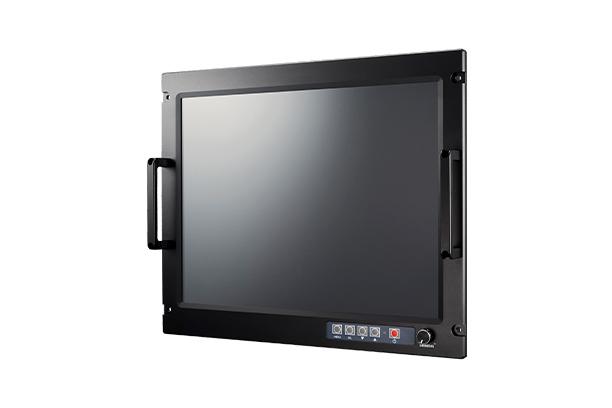

20.1 Inch Military Monitor
Model Name
TMM-201
Data
catalog-tetradyne-TMM-201
Manufacturer information
provider logo
TETRADYNE

Industrial and Marine monitor manufacturer, TFT LCD Monitor

Problem with product info?
Update request
Manufacturer
TETRADYNE
Brand
-
SKU
124515
Product Name
20.1 Inch Military Monitor
Model Name
TMM-201
Size
-
Weight
-
Product Details

GENERAL

This specification defines the descriptions for the TMM-201 TFT LCD Monitor.

TMM series is developed and designed for use in operator display such as Military applications.

TMM series are subject to strict quality tests performed both internally and by independent Military test rule.





KEY FEATURES

- MIL Qualified Product from Military test rule

- Anti-Glare and Anti-Reflective TFT LCD Technology

- LED Backlight Technology

- Tempered Glass for Panel Protection

- Long-Term Lifecycle Management





SPECIFICATION

GENERAL FEATURE
Section Specifications
TFT Technology Active Matrix Liquid Crystal Display, Amorphous TFT (Thin Film Transistor)
Anti-Glare & Anti-Reflective, LED Backlight Technology
Viewable Size 20.1 inch diagonal
Active Area 408 (H) x 306 (V)mm
Resolution 1600 (H) x 1200 (V)
Pixel Pitch 0.255 (H) x 0.255 (V))
Aspect Ratio 4:3
Response Time 30ms
Brightness 330cd/㎡
Contrast Ratio 1400:1
Viewable Angle 170°RL / 170°UD
Max Colors 16.7Million True Color
Synchronization Range 31~80KHz (Horizontal)
55~76Hz (Vertical)
Optimal Resolution 1600 x 1200 @60Hz
Input Signal 1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
1 x RS232 (D-SUB 9p female)
User Control OSD-Button : Power, Menu, Select, Up, Down
Dimming Control : 0~100%
Power Consumption 50W (MAX)
Power Specification 100~230VAC 50/60Hz (Military connector)
Product Dimension 483mm (W) x 399mm (H) x 83mm (D)
Weight 12kg
EMC MIL-STD-461E
CE102, CS101, CS114, CS116, RE101, RE102, RS101, RS103
Environmental (Test Approval) MIL-STD 810F:2003 Method 502.4 Procedure I, II
MIL-STD 810F:2003 Method 501.4 Procedure I, II
MIL-STD 810F:2003 Method 507.4
Shock (Test Approval) MIL-STD 901D (NAVY):1989 (Hi-Shock Test)
Vibration (Test Approval) MIL-STD-167-1A:2005
Chassis Aluminum



DRAWING
