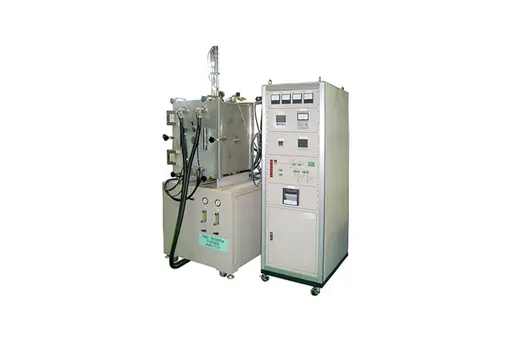

Graphite Furnace
Model Name
TNGRD-200
Series
R&D Furnace
Data
-
Manufacturer information
provider logo
THERMONIKFurnace Manufacturer, Graphite Furnace, Metal Furnace, GPS & Hot Press and more
Problem with product info?
Update request
Manufacturer
THERMONIK
Brand
-
SKU
142082
Product Name
Graphite Furnace
Model Name
TNGRD-200
Size
-
Weight
-
Product Details

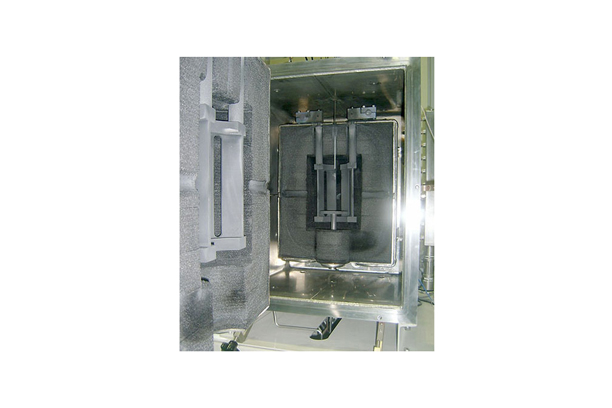

Heat zone 200 Dia. x 130H
Uniformity 180 Dia. x 100H ※Can be changed according to consumer needs
Max temp Use at 2800℃ maximum 3000℃
Heater Graphite Round Type Heater
Insulating material Graphite molded insulating material
Atmosphere A4, N2 (N2 can be used up to 2400℃)
Utility Power 66KVA, cooling water, process gas
THERMONIKFurnace Manufacturer, Graphite Furnace, Metal Furnace, GPS & Hot Press and more
We have been manufacturing electric furnaces since February 2001 through technical cooperation with Japan Thermonic Co. Ltd. Continuous Furnace, Tiltable Continuous Furnace, Multi-stage Furnace, Firing furnace using a heating roller, Single crystal growth furnace We have the above patents and continuously develop and manufacture furnaces that meet the needs of various customers and not only supply the products to the domestic but also export to the US, Japan, Taiwan, China, Vietnam, Germany, France, and China. Also, the Hwa-Seong plant has equipment for experimentation so that customers can install appropriate equipment after the experiment that we help. In return for the support of customers, we will do our best to become a company that develops together with consumers by supplying better equipment at low prices. We would like to ask for your support and encouragement.
