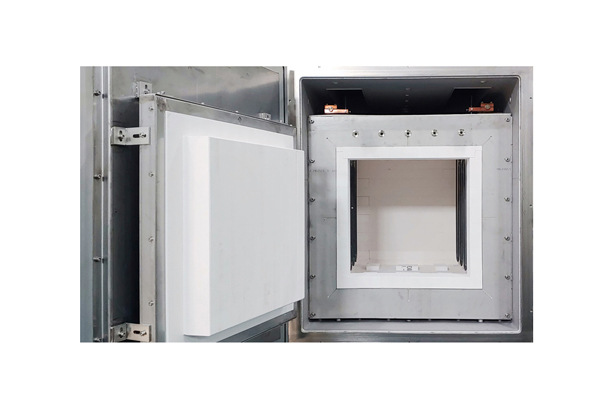

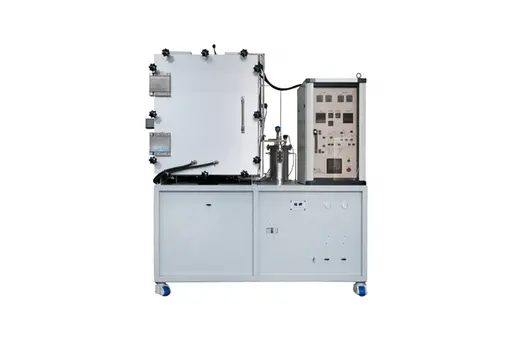

Tungsten Heater(Square Chamber)
Model Name
TNTC-B
Series
Atmosphere Furnace
Data
-
Manufacturer information
provider logo
THERMONIK

Furnace Manufacturer, Graphite Furnace, Metal Furnace, GPS & Hot Press and more

Problem with product info?
Update request
Manufacturer
THERMONIK
Brand
-
SKU
142084
Product Name
Tungsten Heater(Square Chamber)
Model Name
TNTC-B
Size
-
Weight
-
Product Details
Heat zone 550 x 550 x 600H ※Can be changed according to consumer needs
Max temp Use at 1800℃
Vacuum Rotary pump vacuum for substitution
Heater Tungsten Rod Heater
Insulating material Ceramic insulating material Bubbling system for using wet gas Forced cooling method for fast cooling
Atmosphere N2 + H2, Ar
Utility Power 70KVA, cooling water, process gas, air
Characteristics Power consumption is good due to its good insulation. The price is cheaper than that of A type.
Optional items Oxygen partial pressure control device
THERMONIK
Furnace Manufacturer, Graphite Furnace, Metal Furnace, GPS & Hot Press and more
We have been manufacturing electric furnaces since February 2001 through technical cooperation with Japan Thermonic Co. Ltd. Continuous Furnace, Tiltable Continuous Furnace, Multi-stage Furnace, Firing furnace using a heating roller, Single crystal growth furnace We have the above patents and continuously develop and manufacture furnaces that meet the needs of various customers and not only supply the products to the domestic but also export to the US, Japan, Taiwan, China, Vietnam, Germany, France, and China. Also, the Hwa-Seong plant has equipment for experimentation so that customers can install appropriate equipment after the experiment that we help. In return for the support of customers, we will do our best to become a company that develops together with consumers by supplying better equipment at low prices. We would like to ask for your support and encouragement.
