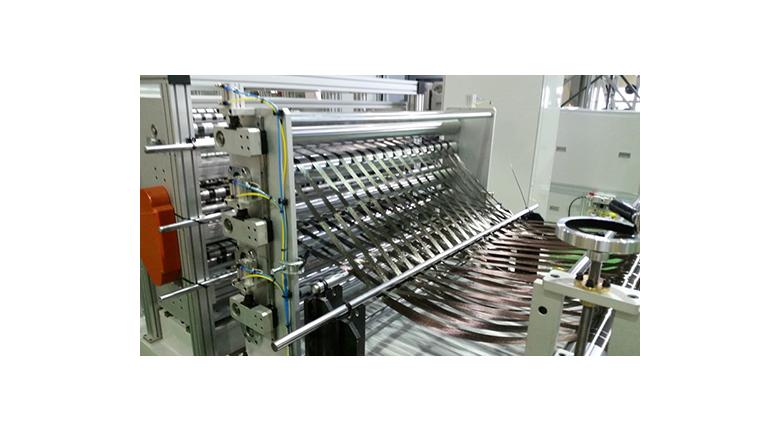

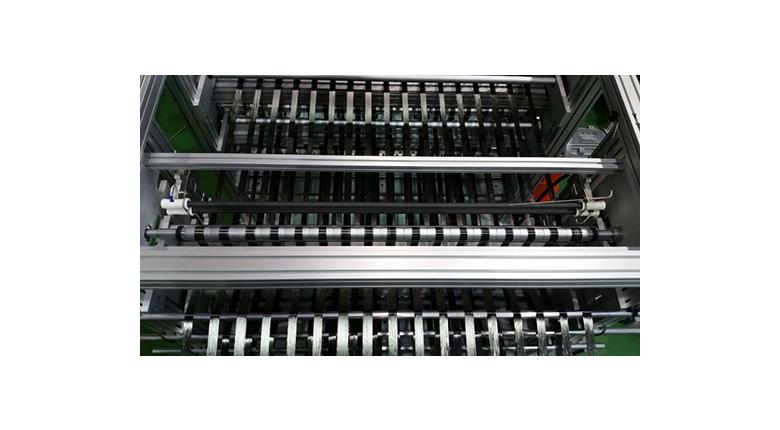

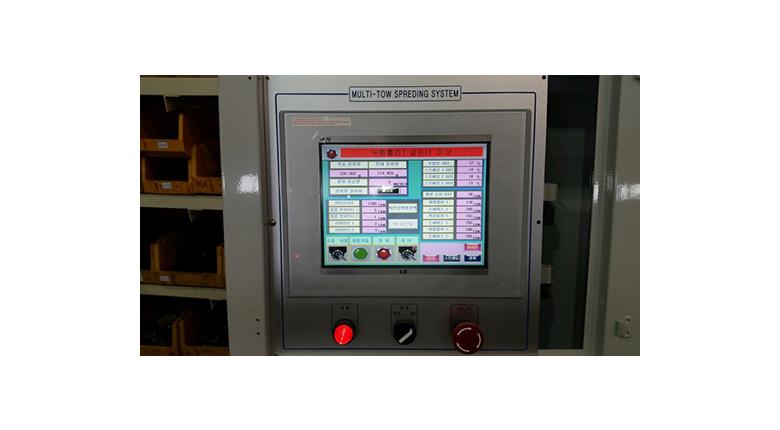

The multi tow spreading machine utilizes the same technology of the single tow spreader. It can be configured to spread a maximum of 50 ends simultaneously.[Max. UD Spread Fabric Width 400~1,000mm]
The multi tow spreading machine will increase productivity, satisfying larger demands of spread carbon fiber. The winding system has two kinds of options, such as [Tape rolls] and [UD sheet].
Custom sizes to suit your applications
Equipment type : TFS400 Specification
Machine size(mm) : 1200(W)x5000(L)x1500(H)/Multi Creel
Roving : Carbon fiber - Regular & Large tow, Glass, Aramid fiber etc
Creel : 20 Creel/depend on width
Unsizing device : Frunace or IR ,Temp control max.1200°C
Spreading width(12k) : single - max. 20~25mm depend on width, multi - max. 400mm
Spreading parameter : spreading temp. traversing velocity, curvature of roller, tension etc
no. of spreading unit : standard type 2 unit/depend on width
Pre-heating device : IR heater/width 450mm
Winding velocity : max. 5M/min
Winding type : tape roll - 20mm x 20ea, UD Roll - 400mm
Equipment type : TFS1000 Specification
Machine size(mm) : 1700(W)x6200(L)x1900(H)/Multi Creel
Roving : Carbon fiber : Regular & Large tow, Glass, Aramid fiber etc
Creel : 50 Creel/depend on width
Unsizing device : Frunace or IR ,Temp control max.1200°C
Spreading width(12k) : single - max. 20~25mm depend on width, multi - max. 1000mm
Spreading parameter - spreading temp. traversing velocity, curvature of roller, tension etc
no. of spreading unit : standard type 3 unit/depend on width
Pre-heating device : IR heater/width 1000mm
Winding velocity : max. 5M/min
Winding type : tape roll - 20mm x 50ea, UD Roll - 1000mm
