In the continuous production of the UD prepregs, thermoplastic films are applied on both sides of one layer of UD fibres with a defined area weight and hence the reinforcement is impregnated with thermoplastic melt.

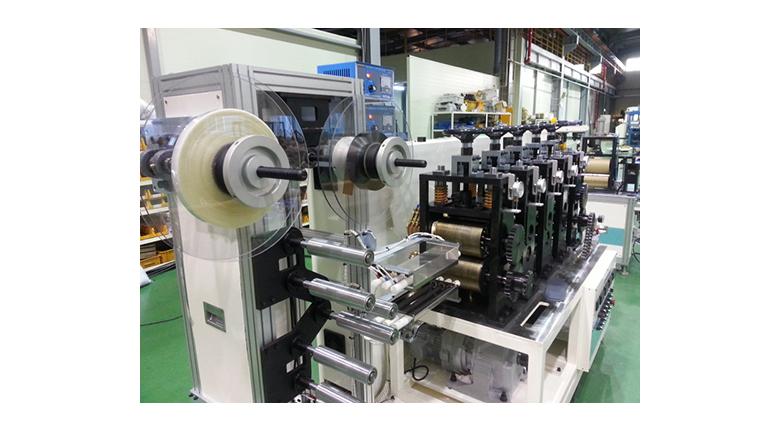

Prepreg Machine for processing Unidirectional fibers and Technical Fabrics
Fully automated controls package
Multi-Fiber Spreading System
Individual drives on each roll set providing better process control
3~5 precision compaction roll sets with heat distribution system
Proprietary Bed-Plate Construction
Top and Bottom Paper Rewind and Let-offs
Proprietary Slitting Device Construction
Available in 400~1000mm width capacity
Highly reliable and easy to operate
Specification
Prepreg Width : max. 400 ~ 1000㎜
Driving Speed : max. 3m/min.
Thermoplastic Resin Impregnation : Hotmelt type Film Lamination
FAW Control : 75~400 ± 5g/㎡
R/C Control : 30~50 ± 2%
Heating Temp : max. 400℃
Cooling Temp : 30~50℃
Compressing & Calendering roller : 5set Heating roller
Resin Film Thickness : 25~100㎛
Dimension : 13000mm(W) x 2400mm(D) x 1900mm(H)
Electric control : PLC Software + Touch Screen
Electric capacity : 60Hz, 120KW

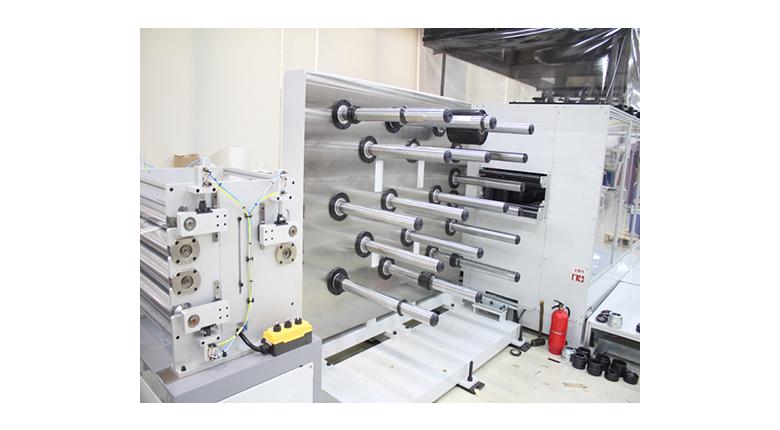

Option : Roving Creel, Film Creel, Slitting/Winding), Drum Winding
