Autoclave Machine
Model Name
-
Series
Automatic Machinery - Composite Equipment
Data
-
Manufacturer information
provider logo
Tipoel

Industrial automation facility, Automation equipment for composite materials, Testing equipment, Industrial Composite materials, Composite material bicycle

Problem with product info?
Update request
Manufacturer
Tipoel
Brand
-
SKU
34877
Product Name
Autoclave Machine
Model Name
-
Size
-
Weight
-
Product Details

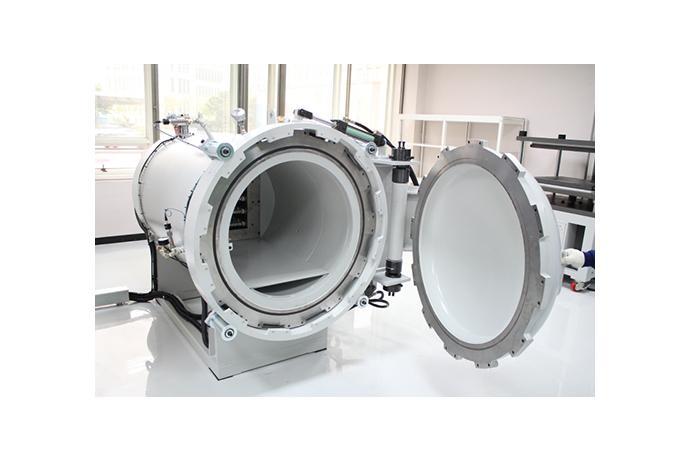

The LAB series is an aeronautical composites material polymerization autoclave that is ideal for used in curing tiny parts in composite. The series is used in areas such as laboratories, research centers, and in universities. It is completely mounted on a platform together with any equipment. It is pre-wired with all safety components.

The LAB series comes with quality parts to attain optimal ratio in terms of quality and cost. The series are available in three variants, the LAB 115, the LAB 120, and the LAB 1530. They measure from 1 m x 1.5 m up to 1.5 m x 3 m.

Pressure Vessel(Chamber)

Material : Body & Closure (SA516 70, A 266)

Working zone : 800mmD Χ 2000mmL

Closure : Hydraulic Quick Closure

Normal Operating Pressure : 5Kg/cm2

Relase Pressure(Safety valve) : 7Kg/cm2

Normal Operating Temp.: 150℃

Thickness : 100T

Specification

Fan Unit : Motor Housing Cooling System, Inverter included, Cooling Line

Heater unit : Type - Kanthal Corrugated tube Heater, Exterior Material - STS304, Heater control - SCR unit

Piping, Tubing, Valves : Control & process air pipe, Vacuum Line, Cooling Water Line

Thermocouple unit : "K" Type, 10set

Pressure Transducer : Pressure Range : 0~500Psig, Accuracy : +/- 0.5% of F.S

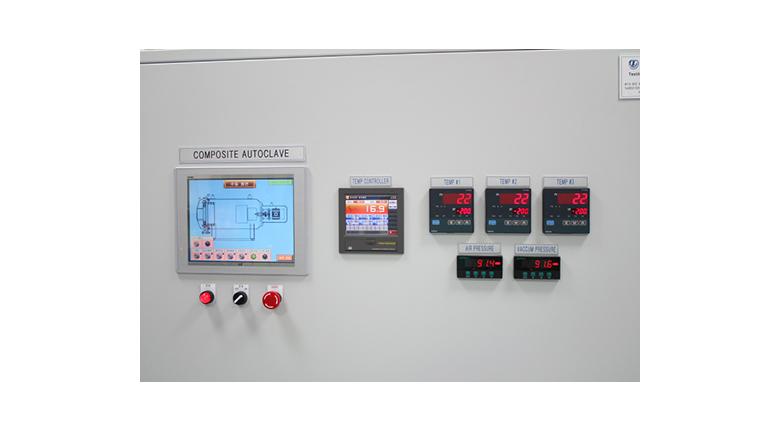

Control system : PLC Based control, CPU Module/power module, PLC Logic program

Autoclave Temp. controller : 3 zone control, one Programable controller and 2 slave controllers, RS Communication & Analog output

Vaccum Controller : Power - 110/220VAC, 1-Phase, 60Hz, PID Control

Pressure Controller : Power(110/220VAC, 1-Phase, 60Hz), PID Control

Tipoel
Industrial automation facility, Automation equipment for composite materials, Testing equipment, Industrial Composite materials, Composite material bicycle
Textile for Life Co Ltd.,[T4L] located in the Hi-Tech industry Development Zone in Gyeongsan-si Gyeongsanbuk-do, Korea. T4L is an venture company established on 2001 with starting up high-tech industrial & textile machinery business and now we are expanding our business into the composite processing machines and composite materials manufacturing business using advanced technologies, provide customer with valued added products. Being devoted in depth to R&D and quality improvement to lead the market we understand fully how we build machines and composite materials that can satisfy different customer's requirements and creates values for our customers. We are now under developing and mass producing not only composite processing machines such as braiding m/c, prepreg m/c, pultrusion m/c and various industrial purposes but composite materials sporting goods, a essential parts of bicycle and personnel protective gears. we will continue to satisfy our customers by developing various products of high-tech materials, which is one of the core industries in the future. T4L's all staffs and management make efforts in order to bring more benefit to our customers with creative quality management. As a company armed with a pioneering spirit and creativity, we will be a steadfast partner that will aid you in your development through all kinds of business environments. Through our unremitting endeavors, T4L Composite has the advanced production equipments, the consummation management system, rich production experience and outstanding talents. We look forward to establishing long-term business relations with you on the basis of equality and mutual benefit.
