Pultrusion Machine / Braidtrusion Machine
Model Name
-
Series
Automatic Machinery - Composite Equipment
Data
-
Manufacturer information
provider logo
Tipoel

Industrial automation facility, Automation equipment for composite materials, Testing equipment, Industrial Composite materials, Composite material bicycle

Problem with product info?
Update request
Manufacturer
Tipoel
Brand
-
SKU
34878
Product Name
Pultrusion Machine / Braidtrusion Machine
Model Name
-
Size
-
Weight
-
Product Details

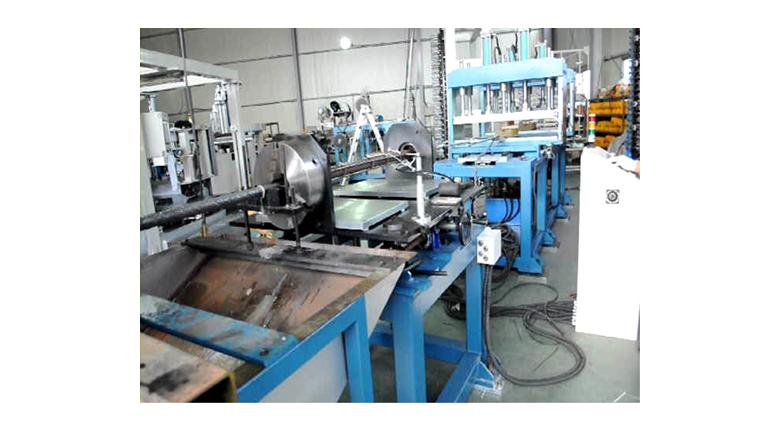

Pultrusion Unit includes a fibre feeding unit, a polymeric bath, a preforming unit, a heated jet (pressform), a pulling and cutting machine. The Unit allows for manufacturing structural profiles with uniform cross sections from uniaxially oriented fibre-based plastics continuously.

pecification

Product profile Size : 48" (1,200mm)(W) x 10" (250mm)(H)

Pulling force : 12,000kg( 12Ton )

Clamping force : 5,500kg ( 5.5Ton )

Pullng Speed : 0 ~ 1500mm/min

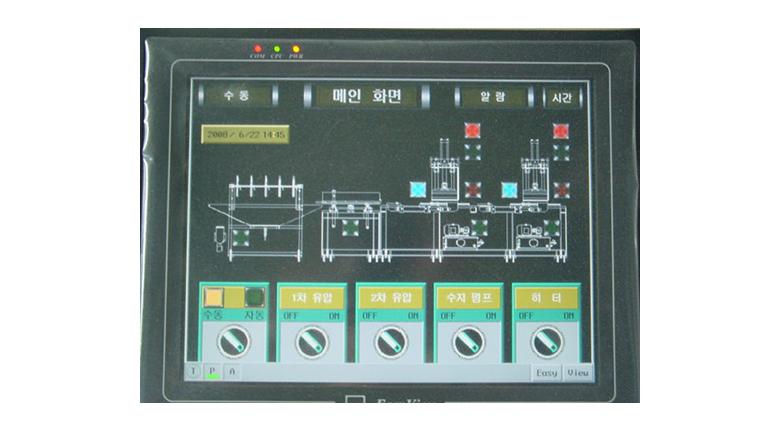

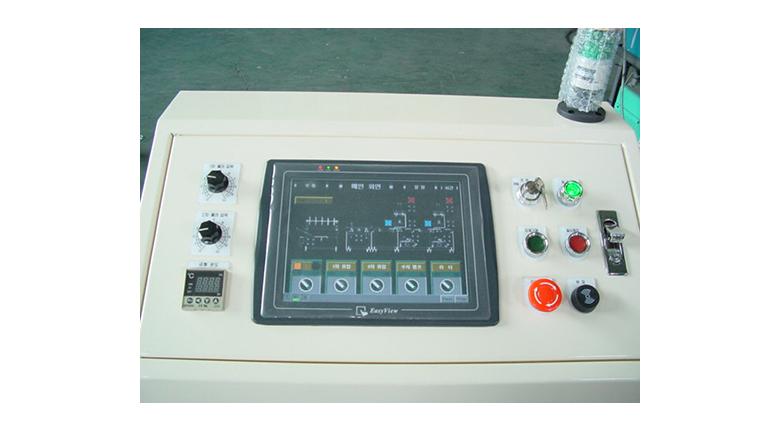

Control : Heater Temperature Control, Speed Control ( Inverter Motor drive Control ), Cutting Control ( Length & Time Control )

Dimension (m) : 25(W) x 5.5(L) x 3(H)

Weight : NET 15Ton

Electricity : Voltage 380V, 60Hz/ 3 Phases, 4 channel/ 20KW, 50A

ROVING RACK : 240 ROLL / 1SET X 4 = 총960 ROVING ROLL

RESIN BATH : 200 L / 1SET, STS 304 PLATE

HEATING UNIT : 12KW / 4SET, ALUMINUM CASTING HEATER

CUTTING UNIT : 900W x 406 CUTTING

ROLLER CONVEYOR : 3 LINE / 1SET

Tipoel
Industrial automation facility, Automation equipment for composite materials, Testing equipment, Industrial Composite materials, Composite material bicycle
Textile for Life Co Ltd.,[T4L] located in the Hi-Tech industry Development Zone in Gyeongsan-si Gyeongsanbuk-do, Korea. T4L is an venture company established on 2001 with starting up high-tech industrial & textile machinery business and now we are expanding our business into the composite processing machines and composite materials manufacturing business using advanced technologies, provide customer with valued added products. Being devoted in depth to R&D and quality improvement to lead the market we understand fully how we build machines and composite materials that can satisfy different customer's requirements and creates values for our customers. We are now under developing and mass producing not only composite processing machines such as braiding m/c, prepreg m/c, pultrusion m/c and various industrial purposes but composite materials sporting goods, a essential parts of bicycle and personnel protective gears. we will continue to satisfy our customers by developing various products of high-tech materials, which is one of the core industries in the future. T4L's all staffs and management make efforts in order to bring more benefit to our customers with creative quality management. As a company armed with a pioneering spirit and creativity, we will be a steadfast partner that will aid you in your development through all kinds of business environments. Through our unremitting endeavors, T4L Composite has the advanced production equipments, the consummation management system, rich production experience and outstanding talents. We look forward to establishing long-term business relations with you on the basis of equality and mutual benefit.
