product Image

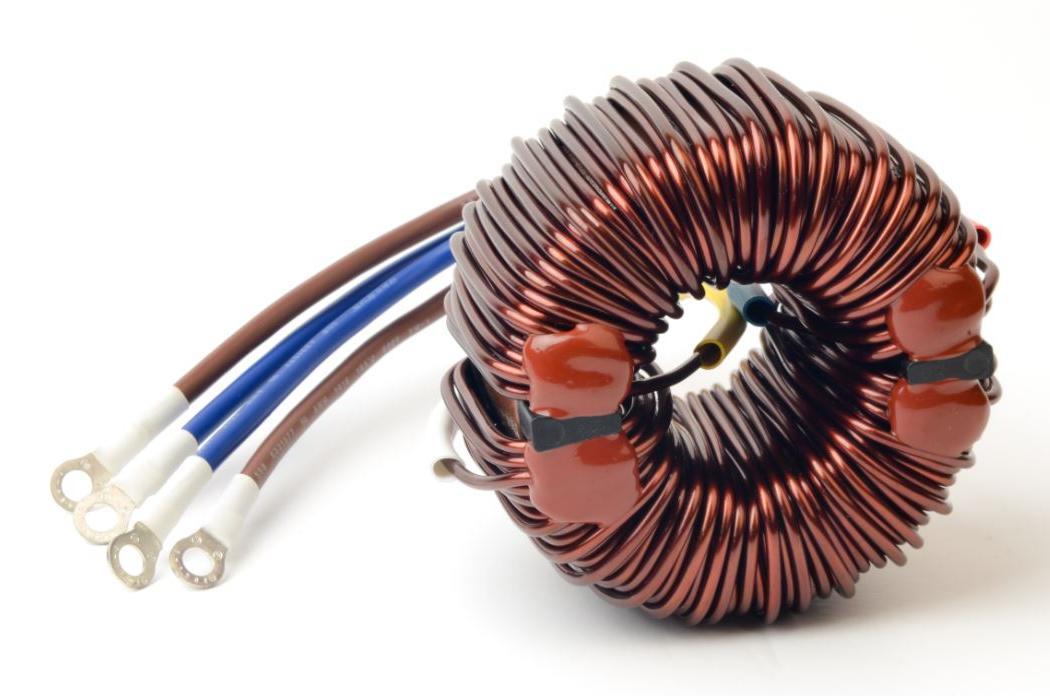

Reactor
Model Name
AHK740-B0800A
Data
-
Manufacturer information
provider logo
TNC

Electromagnetic wave shield parts manufacturer, Line filter, EMI filter, Blocking filter

Problem with product info?
Update request
Manufacturer
TNC
Brand
-
SKU
137024
Product Name
Reactor
Model Name
AHK740-B0800A
Size
-
Weight
-
Product Details

Standard Specifications

Part No. AHK740-B0800A
Division AC
Capacity 3KW
Form Toroidal
L (mH) 0.800
Current(A) 20
Wire Ø 2.30



DC-BIAS
Turns 59
0A 0.808
5A 0.77
10A 0.728
15A 0.675
20A 0.616



Electromagnetic wave shield parts manufacturer, Line filter, EMI filter, Blocking filter
Recently high-speed and large-capacity information communication system demand have been globally increased, accordingly unnecessary EMI(Electro Magneic Interference) occur also increased. Its true that above situation make increase of frequency spectrum's inefficiency which various machines and systems. TNC as a "Electromagnetic protection component enterprise" was established corporate body on 1997.05, TNC made a effort to be foundation of domestic electronics industry and still continue to focus on technology development to be the best place on EMI component development measures. TNC's entrepreneurship is based on new EMI equipment, production technique, quality management, and highly skilled engineers with long-term technology research and development to make new product, competitive price, exact delivery schedule. With that entrepreneurship TNC will highly jump through the world.
Inquiry
