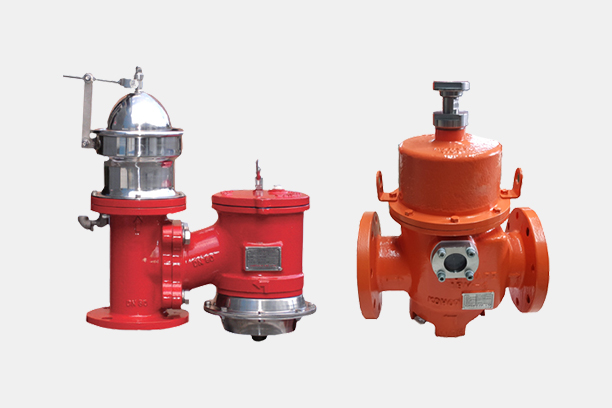

product Image
PRESSURE RELIEF VALVE
Model Name
KSPR
Series
Land-Based-Products(Breather valve)
Data
CATALOG-TOPSAFE-KSPR
Manufacturer information
provider logo
TOPSAFE

Safety equipment for Flammable fuel tank and Marine cargo tank manufacturer

Problem with product info?
Update request
Manufacturer
TOPSAFE
Brand
-
SKU
117813
Product Name
PRESSURE RELIEF VALVE
Model Name
KSPR
Size
-
Weight
-
Product Details

KSPR PRESSURE RELIEF VALVE

The model KSPR pressure relief valves are an advanced design for vent to atmosphere applications.
Designed manufactured and tested according to the API 2000 code.
Utilize the latest technologies to provide protection against positive or over pressure and prevent air
intake, evaporative losses of product and help to contain odorous and potentially explosive vapours.


INTRODUCTION
The KSPR is a weight pallet model, designed to handle over pressure with a minimum pressure of 20mmW.C and a maximum setting of 700mmW.C
Body materials are available in Aluminium, Carbon Steel, 304SS and 316SS with various trims to suit individual requirements.
Sizes range from 50mm through to 300mm with ANSI 150lb FF flanges as standard. (Different connections available on request).


PRESSURE RELIEF VALVE (WEIGHT TYPE)
SIZE2” through 12”
MATERIALAL / C.S / S.S
SETTING PRESSURE25 ~ 700mmW.C
TOPSAFE
Safety equipment for Flammable fuel tank and Marine cargo tank manufacturer
TOPSAFE is always challenging and working as a pioneer to accomplish the unlimited possibility to the newest technology for Safety and Protection device of petrochemical storage tanks and marine tankers. TOPSAFE has been trying to produce the best quality products with own special technology. TOPSAFE, located in Gimhae Korea is leading to manufacture of safety valve in Korea and we are gaining world-wide recognition now. We supply high qualilty safety valve with state of the art technology from our modern manufacturing facilities. We have acquired a good reputation for our quality products both domestic and abroad market. We are a main safety valve supplier for pertroleum industries, plant, sewage treatment, shipbuilding and our systems, that is production supply delivery are available to meet your existing and upcoming tank projects. We would like to thank your patronage and wish to inform you our capabilities and products. finally, we hope you will find this information helpful for your future energy saving plans.
