Ink jet marking M/C, CIJ, Marking System, CIJ Printer, DOD Printer

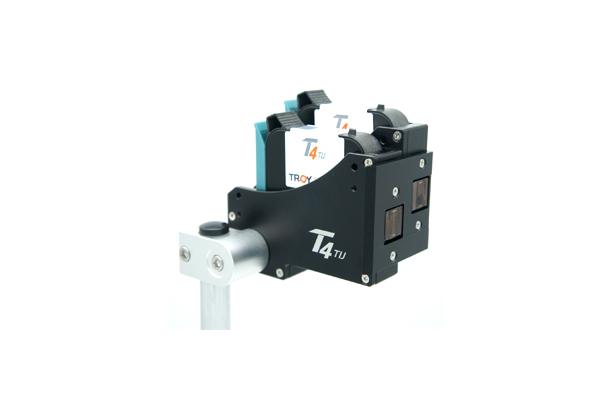

T4 TIJ
- 300dpi Text, Image and bar code marking
- hp Technology solvent / water based cartridge
- Simple and Lightweight Design
- 7″ Touch Panel Display
Summary
Introducing the new Troy original T4 TIJ (Thermal Ink Jet) marking system. T4 TIJ printer uses hp Technology water based ink cartridge to print on porous surface (carton box, paper and etc.) and solvent based ink cartridge to print on non-porous surface (PP, PE, Vinyl, Steel, Glass and etc.). There are many kinds of TIJ systems, but T4 TIJ is more functional, cost-effective, and even fashionable. Simple, handy and lightweight design allows easy-installation anywhere. In addition, it can be an important factor which can lower the manufacturing and maintenance cost. T4 TIJ system provides a Window based graphic user interface to help users operate the system without trouble. Software menu is available in a variety of languages with 7″ touch panel display.
Print spec
Printhead Capability. TIJ.S (1 head) TIJ.D (2 heads)
Resolution. 300DPI, 600DPI
Print Speed Max. 60m/min (300DPI)
Print Height. 1-12.7mm
Storage Capacity. 1,000 messages
Message. Text, Barcode, Image, Auto Date/Time, Counter, Shift Code
Barcode. QR Code, DataMatrix, CODE128, CODE39, CODE93, CODE2OF5, EAN13, UPCA, UPCE, ITF14
Language. English, Chinese, Korean, Japanese, Vietnamese, Italian, Turkish, Spanish, Arabic, Persian, Portuguese, Lithuanian, German, French, Russian, Dutch, Indonesian, Hindi, Malaysia, Bangla, Thai, Rumanian
Font Type. gulm, Arial / Importing an external font
Date Type. Production Date, Expiration Date, Julian Date
Size and Weight
Printhead Size. 129X107X30mm
Printhead Weight. 386g, 482g(including a cartridge)
Controller Size. 203X113X42mm
Controller Weight. 924g
Display Size. 7inches
Ink spec
Manufacturer. HP original Cartridge(hp TIJ 2.5)
Ink Type. Solvent, Aqueous, Pigment, UV
Ink Color. Black, Red, Blue, Green, White, Yellow
Marking Surface. All material is available
Product spec
Power. AC90V-240V / 50-60Hz(Dedicated AC)
Interface. 7″ (800X480mm) Color LCD Touch Screen
Connection Port. Photo Sensor, Warning Light, BCD, RS232, Encoder, USB
Backup/Recovery. USB
Ink management. Auto Configuration of Ink residual and Ink Type
Operating Temperature. -10-45℃
Operating Humidity. 10-85%RH
Certificate. CE, FCC
