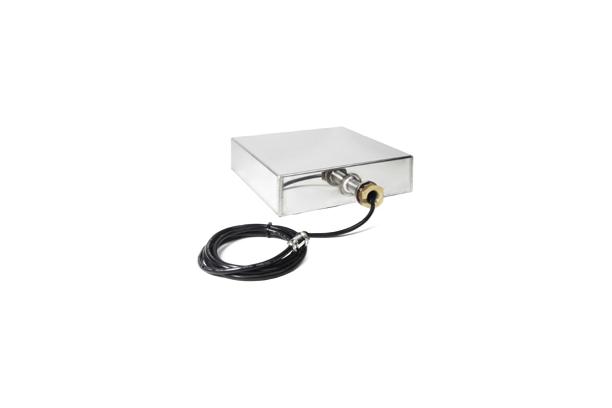

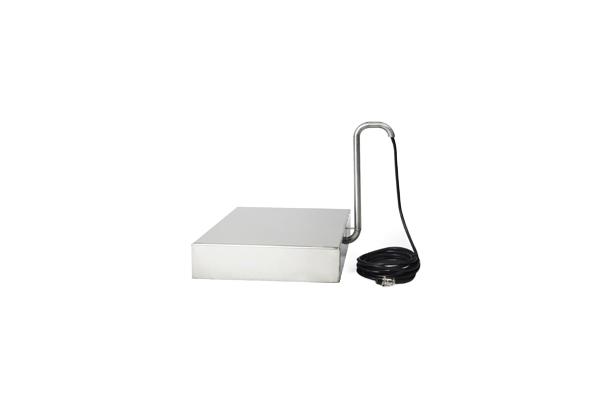

Ultrasonic Transducer
Model Name
UIL-400TD
Series
Ultrasonic Transducer
Data
-
Manufacturer information
provider logo
UIL ULTRASONIC

Industrial Ultrasonic Cleaner Manufacturer, Ultrasonic Transducer, Generator and more

Problem with product info?
Update request
Manufacturer
UIL ULTRASONIC
Brand
-
SKU
142427
Product Name
Ultrasonic Transducer
Model Name
UIL-400TD, UIL-600TD, UIL-1000TD, UIL-1200TD, UIL-1800TD, UIL-2400TD
Size
-
Weight
-
Product Details
Model Ultrasonic Power Dimension
(W x D x H)
Mounted on Frequency Material of Oscillator Material of Case Body
UIL-400TD 400W 280 x 220 x 100 Base 28KHZ ~ MHZ
(Select)
B.L.T STS 316L,STS 304
(Special materials available
UIL-600TD 600W 280 x 220 x 100 Base / Side / Upside 28KHZ ~ MHZ
(Select)
B.L.T STS 316L,STS 304
(Special materials available)
UIL-1000TD 1,000W 370 x 260 x 100 Base / Side / Upside 28KHZ ~ MHZ
(Select)
B.L.T STS 316L,STS 304
(Special materials available)
UIL-1200TD 1,200W 370 x 260 x 100 Base / Side / Upside 28KHZ ~ MHZ
(Select)
B.L.T STS 316L,STS 304
(Special materials available)
UIL-1800TD 1,800W 410 x 300 x 100 Base / Side / Upside 28KHZ ~ MHZ
(Select)
B.L.T STS 316L,STS 304
(Special materials available)
UIL-2400TD 2,400W 740 x 560 x 100 Base / Side / Upside 28KHZ ~ MHZ
(Select)
B.L.T STS 316L,STS 304
(Special materials available)

※Custom-make possible according to customer's demand



Transducer

It is a device that converts an electrical energy from a generator to mechanical one which can create the ultrasonic power.



Features

  1. Easy to install and use, regardless of the type and size of tanks, and moreover the old tanks are available to reuse.
  2. The position of the transducer can be changeable, it can be applicable to any types or sizes of the tank.
  3. Possible to build up cleaning process or enhance ultrasonic power by using an auxiliary device simply.
  4. High Performance: The maximum Q is 5cm per sec, and the electroacoustic rate is over 90%.
  5. High Power: As the number of vibrators is increased, the coefficient of power would get higher, creating highly maximum power.
  6. Low Heat Generation: High mechanical efficiency results in low heat generation.
  7. High Durability : Less damages against large amplitude of vibrations.
