Product Name

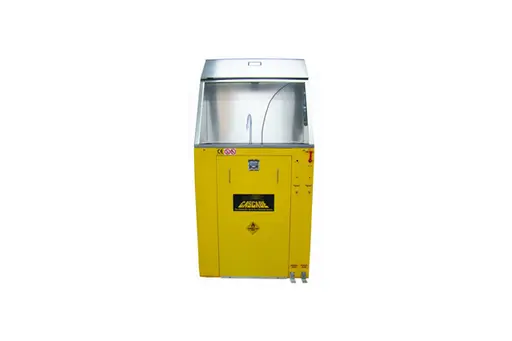

Manual Cleaning Work Station
Model Name
UG7500NG
Size
-
Weight
-
Product Details

Large work surface provides ample room for spray guns, components and large spay equipment. Removable work screen with surround lip contains small parts for retrieval. Wash parts with a Flow-through brush which is activated by a foot pedal. Rinse parts using a spigot which is activated by a foot pedal and dry with a Blow gun.





Additional Models

  • UG7500NGH: UG7500NG with hose cleaning.
  • UG7500NGW: UG7500NG with a water gun instead of a brush.



Features

  • For use with solvent or water.
  • Large tank size is 30 1/8”w x 16 1/4″d x 10″h.
  • Wash parts with a Flow-through brush which is activated by a foot pedal and powered by a 2″ diaphragm pump.
  • Rinse parts using a spigot which is activated by a foot pedal and powered by a second 2″ diaphragm pump.
  • Dry parts with a Blow gun.
  • Removable work screen with lip to contain parts.
  • Corrosive resistant stainless steel tank and hood for longer life. Powder coat cabinet.
  • Fume extractor in hood removes vapors and odors from work area.
  • 2 HDPE 5 gallon wash pails.







Specifications

  • Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
  • Pump for brush: 2″ dual diaphragm pump with unique shuttle valve for long life, output is 1.9 gal/min (7 L/min). Flow is regulated by a flow control dial.
  • Cleans solventborne paint from the following types of spray guns: gravity, siphon, pressure and cleans pots.



Shipping Dimensions:  48″w x 28″d x 70″h (122cmW x 71cmD x 177cmH) Shipping Weight: 215 lb (98kg)

Product Dimensions: 33″w x 20″d x 67″h (84cmW x 50cmD x 170cmH)
