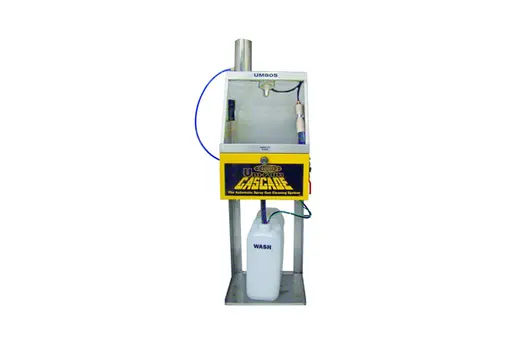

Wall Mount Solvent Spray Gun Cleaner
Model Name
UM80S
Series
Spray Gun Cleaners – Solvent
Data
Catalog-UNI-RAM-Spray Gun Cleaner-UPP6500D
Manufacturer information
provider logo
UNI-RAM

Solvent Spray Gun Cleaners Manufacture, Water Spray Gun Cleaners and more

Problem with product info?
Update request
Manufacturer
UNI-RAM
Brand
-
SKU
139779
Product Name
Wall Mount Solvent Spray Gun Cleaner
Model Name
UM80S
Size
-
Weight
-
Product Details

The small, wall mount, UM80W is popular with the small shop owner where space is at a premium.

Ideal for quick color changes in larger shops:
Bring a tray of color into the booth to spray parts. After  spraying a color, use the UM80S to flush paint from the channel of the spray gun. Clean the outside of the gun with the Flow-through brush. Mounting the compact UM80W on the wall inside the spray booth saves time because the gun can remain connected to the air line and the painter can remain in the booth.



Models

UM80S / UM80W





Operation

Cleaning is FAST.

  • Place the paint channel of the spray gun under the nozzle, turn the pump on and pull the trigger to flush the paint channel for about 30 seconds until clean.
  • Wash the overspray from the spray gun with the Flow-through brush.



Features

  • Each cleaning tool, nozzle and brush, is powered by a different 2″ diaphragm pump with a flow control. Wash solvent returns to the pail for reuse, a green approach.
  • Fume extractor removes vapors and odors from the work area.
  • Comes with a 2.5 gallon pail and a bracket to mount the unit to a wall.





Specifications

  • Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
  • Pump for brush: 2″ dual diaphragm pump with unique shuttle valve for long life, output is 1.9 gal/min (7 L/min).
  • Cleans solventborne paint from a spray gun with a disposable cup system.



Shipping Dimensions: 18″w x 15″d x 47″h (46cmW x 38cmD x 119cmH) Shipping Weight: 33 lb (15kg)

Product Dimensions: 15″w x 11.5″d x 44.0″h (38cmW x 29cmD x 112cmH)
