Compact Spray Gun Cleaner
Model Name
UM10W
Series
Spray Gun Cleaners – Water
Data
Catalog-UNI-RAM-Compact Spray Gun Cleaner-UM10W
Manufacturer information
provider logo
UNI-RAM

Solvent Spray Gun Cleaners Manufacture, Water Spray Gun Cleaners and more

Problem with product info?
Update request
Manufacturer
UNI-RAM
Brand
-
SKU
139784
Product Name
Compact Spray Gun Cleaner
Model Name
UM10W
Size
-
Weight
-
Product Details

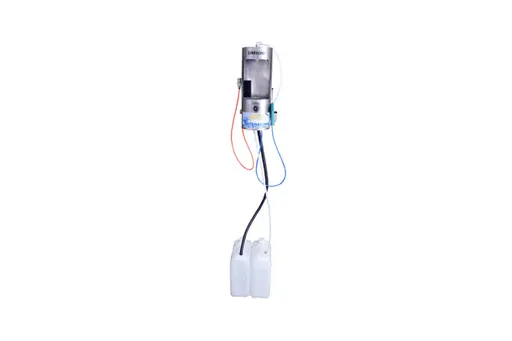

The small and economical wall mount, UM10W is popular with the small shop owner who uses the disposable cup spray gun system.





Features

  • Water flows by Venturi. No pump in use. Water consumption is low.
  • Unit comes with 2 HDPE pails, mounting bracket and a one-half quart (473 ml) bottle of AQUA KLEEN PGC concentrate (102-8200), which, when added to water, enhances the cleaning power of the water.
  • Customer disposes of dirty water in accordance with local requirements.





Operation

  • Cleaning is FAST.
  • Press the paint channel of the spray gun against the nozzle, turn the pump on and pull the trigger to flush the paint channel for about 10 seconds, until clean.
  • Dry with the blow gun.
  • Clean pail contains ½ bottle of AQUA KLEEN PGC and 2.5 US gallons of distilled or tap The second pail collects the waste water which is later disposed of in accordance with local requirements.





Specifications

  • Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
  • Cleans waterborne paint from a gravity spray gun with a disposable cup system.



Product Dimensions: 10.5″w x 10.5″d x 19.5″h (27cmW x 27cmD x 50cmH)
