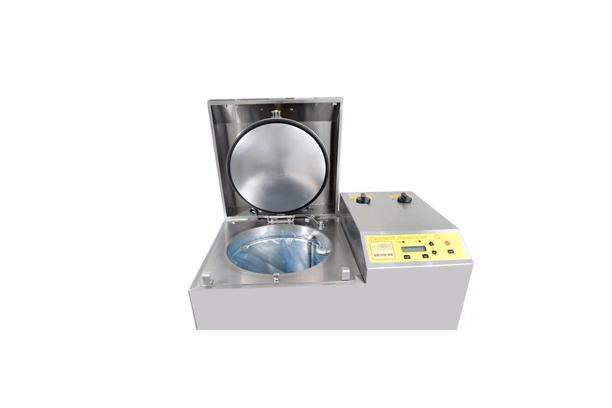

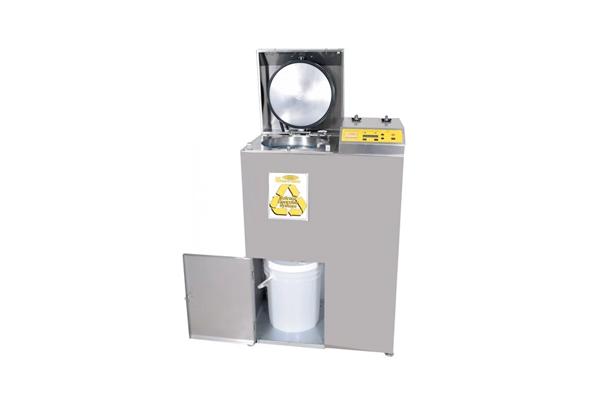

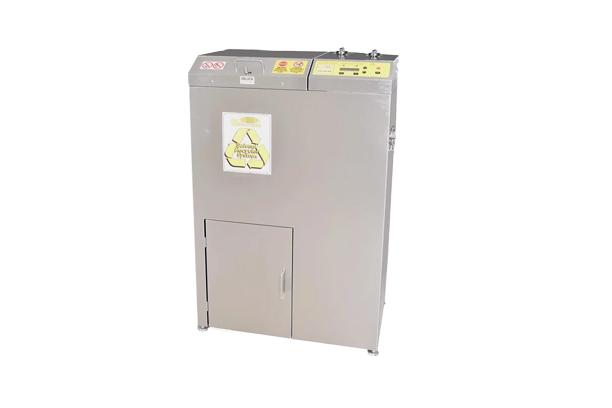

The BB30N solvent recycler provides a shop with clean recycled solvent every day. Typical solvents include paint thinner, acetone and varsol. With a Uni-ram solvent recycler the shop’s environmental footprint shrinks and the shop saves money. Solvent purchases and the cost for used solvent transported off-site drop by approximately 90%.

The BB30N provides 5 gal of clean recycled solvent from each recycling batch.

Capacities For Industrial Solvent Recyclers

Features

• Distillation by vaporization and condensation.
• Power Supply: 220-240V, 20A, 2100W heating element
• Direct electric heating with no oil to change or refrigerant to service for lower maintenance.
• Sophisticated solid-state microprocessor controls the work flow and continuously monitors operating parameters. Many built in safety programs. The computer display (LCD) shows the set point and real-time temperatures at the tank and condenser. Special features in the computer menu allow for:

1) lowering of the heater wattage to make the boiling phase less vigorous; this is important for improving the quality of low boiling point solvents such as acetone.

2) increasing the post heat time to make the solvent residue dryer thus increasing recycling efficiency.

• The temperature set points can be adjusted precisely in one degree increments.
• Complete self diagnostic system. Sensors monitor the operating system; Faults are described using messages in English for easy diagnostics.
• Dual pump transfer system to pump dirty solvent directly into the distillation tank and pump clean recycled solvent from the recycler to a clean drum.
• Automatic or timed shut off(the operator specifies quantity of hours for a timed shut-off.)
• Outer cabinet, safety cover and lid are made from corrosion resistant 304 grade stainless steel for long life.
• High efficiency condenser is constructed from 316 grade stainless steel and cooled by electric fan.
• Complete with 3 heat resistant liner bags to capture residue, 2 lid gaskets and a factory installed explosion proof plug.

Options

• P Vacuum Assist
• M Pneumatic Drum Mixer
• L Pat-Light with Buzzer
• A Rapid Tank Cooling
• W Filter system for water recycling
• G Recycle solvent and water mixture

Safety

• Certified to UL safety standard 2208, and CSA standard 22.2 no. 30 and 88 by ETL for use with solvents in Class 1, Division 1, group D locations. UL2208, with many built in safety programs, is the safety standard for solvent recyclers.
• Additional safety features include the lid pressure relief system, safety cover and optional lid lock.

IMPORTANT SAFETY AND USAGE ADVISORY

Do not recycle solvents that includes Nitrocellulose due to its low auto ignition temperature and Peroxides due to its thermal decomposition. Check the Safety Data Sheet of both the solvent and waste material for the presence of these 2 substances.

Operation

Pour 5 gallons of used solvent into the liner bag in the distillation tank. Press Start to turn on the heating element. The solvent vaporizes, travels through the condenser where it is cooled to a liquid by an electric fan and then flows into the receiving pail.  The residue that remains in the heat resistant liner bag is transferred to a waste drum for later disposal. Most residues including waste paint is disposed of as a hazardous material.

Typical Applications

• Reclaim lacquer thinners, acetone and gun wash solvents used to remove paint and debris from spray guns and other spray equipment.
• Reclaim acetone used to clean equipment used in making fiberglass products.

Typical users

Industrial Paint Shops, Fiberglass Fabricators, Printers, Metal Fabricators.

Specifications

• Speed: 4-6 hrs.
• Compressed air supply minimum of 85 psi(6 barr), 2 cfm of clean dry air. Diaphragm pressure regulator is built in and pre-set. Both 4″ diaphagm pumps have a power output of 3.7 ga/min.
• Power Supply: 220-240V, 2100 W heater.
• High efficiency 316 grade stainless steel condenser.
• Digital display with an easy to use menu.
• Microprocessor: Controls work flow. Performs self-diagnostics explained with English messages and odometer to log batches completed.
• Automatic or timed shutoff.

Shipping Dimensions: 30″w x 20″d x 45″h (76cmW x 51cmD x 114cmH) Shipping Weight: 150 lb (68kg)

Consumables

• a high-temperature liner bag, supplied as a 10-pack (part number LB900C-10), is required for every recycling batch.
• Replace the lid gasket in your unit at least once every 6 months. Part numbers are shown below.
