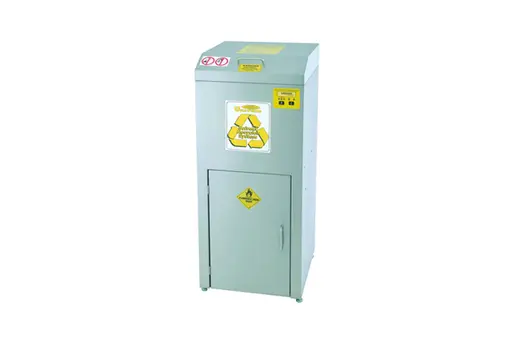

The URS600CE is a favorite of the Paint and Body Shop. The URS600CE solvent recycler provides a shop with clean recycled solvent every day. Typical solvents include paint thinner, gun wash solvent and acetone. With a Uni-ram solvent recycler the shop’s environmental footprint shrinks and the shop saves money. Solvent purchases and the  cost for used solvent transported off-site drop by approximately 90%.

The URS600CE provides 19 L of clean recycled solvent from each recycling batch.

Automotive Solvent Recyclers

Additional Models

URS600EP2CE

is the same as URS600CE except dirty solvent is pumped directly into the distillation tank and clean recycled solvent is pumped from the receiving pail to an external clean container. Pumps are activated by turning a timer.

Benefit

The work place is safer: no pails to lift, no solvent to pour, less solvent spillage.

The URS600EP2CE is designed to connect to and recycle used solvent from E-model spray gun and pressure pot cleaners such as UG4000E, UG6000E, UG5000EW, UG6000EH, UPP6500E and UG7500E. These units are equipped with special pails and hoses to permit easy flow of solvent to and from the solvent recycler.

The transfer system of the URS600EP2CE includes:

Two dual diaphragm pumps, two 5-minute timers, a receiving pail, hoses and fittings.

URS600SSCE

is a URS600CE with a 316-grade stainless steel condenser and fittings to resist acidic and corrosive solvents. The UR600CE has a copper condenser.

Features

• Distillation by vaporization and condensation.
• Automatic shut off.
• Sophisticated solid-state microprocessor controls the work flow and continuously monitors operating
• parameters. Complete self diagnostic system.
• Direct electric heating with no oil to change or refrigerant to service for lower maintenance.
• High efficiency copper condenser, air cooled with motor driven fan.
• Outer cabinet and lid are made from 304-grade stainless steel for long life.
• Distillation tank is made from 316-grade stainless steel for long life.
• Complete with 3 heat resistant liner bags to capture residue and 2 lid gaskets.

Safety Features

• Certified to IECEX and ATEX safety directives by SGS Fimko Oy with compliance to ATEX directive Group II Category 2G Ex db ib IIA T2 Gb for use with solvent in zone 1. ATEX certification number is Baseefa11ATEX0118 and IECEX certification number is BAS 11.0057.
• Additional safety features include the lid pressure relief system, safety cover and optional lid lock.

The work shop of collision repair shops in many countries is classified as zone 1 of the gas group by the National Electrical Code due to the intermittent presence of solvent vapors. Uni-ram solvent recyclers are approved for use in collision repair shops, all other locations classified as zone 1of the gas group as well as in non classified locations.

IMPORTANT SAFETY AND USAGE ADVISORY

Do not recycle solvents that includes Nitrocellulose due to its low auto ignition temperature and Peroxides due to its thermal decomposition. Check the Safety Data Sheet of both the solvent and waste material for the presence of these 2 substances.

Operation

Pour 19 L of used solvent into the liner bag in the distillation tank. Press Start to turn on the heating element. The solvent vaporizes, travels through the condenser where it is cooled to a liquid by an electric fan and then flows into the receiving pail.  The residue that remains in the heat resistant liner bag is transferred to a waste drum for later disposal. Most residues including waste paint is disposed of as a hazardous material.

Typical Applications

Reclaim lacquer thinners and gun wash solvents used to remove paint and debris from spray guns and other spray equipment.

Typical users

• Paint and Body Shops
• Wood shops and furniture restorers not using resins containing nitrocellulose.

Specifications

• Speed: 4-6 hrs
• Power Supply: 220V-240V, 2100W heater.
• Condenser: copper (stainless steel condensers are available)
• Display: LEDs indicate heating and cooling phase
• Microprocessor: Controls work flow. Performs self diagnostics.

Shipping Dimensions: 20"w x 20"d x 47"h (51cmW x 51cmD x 120cmH) Shipping Weight: 121 lb (55kg)

Consumables

• a high-temperature liner bag, supplied as a 10-pack (part number LB900C-10), is required for every recycling batch.
• Replace the lid gasket in your unit at least once every 6 months. Part numbers are shown below.
