This product is manufactured by
UNICHEM
Manufacturer
UNICHEM
Brand
-
SKU
125432
Product Name
Heat Shrinkable Tube
Model Name
KUHS-225G
Size
-
Weight
-
Product Details
Applications
KUHS-225G is designed for all general purpose applications such as the insulation and the strain relief of electrical connection and termination , light-duty Harnessing, jacketing, bundling, and color coding of wires.
Especially, exhibits fire safety characteristics combined with low smoke emissions and free of Lead(Pb), Mercury(Hg), Cadmium(Cd), Hexavalent Chrominum(Cr VI), PBBS(polybrominated Biphenyls), PBDEs(polybrominated Diphenyl ethers)
Features
- Shrink ratio : 2:1
- Minimum shrink temperature : 90℃
- Operating temperature range : -55℃ to 125℃
- Flammability : UL VW-1 , 600V , 125℃ , except clear
- UL224[REF.]
Ordering Information
- Standard color : Black (*special colors are available upon request)
- Standard packaging : On spools
- Ordering description : specify product name, size, and color [ex. KUHS-225G 3.0mm Black]
SPECIFICATION VALUES
| Properties | Test Methods | Values | ||
| Physical | Unaged | Tensile strength | ASTM D-412 | Min. 1.1kgf/㎟ |
| Elongation | UL 224 | Min. 200% | ||
| Aged | Tensile strength | ASTM D 412 UL 224 158℃/168hrs | Min. 0.8kgf/㎟ | |
| Elongation | Min. 100% | |||
| Heat shock | UL 224 | Pass@250℃X4hrs | ||
| Low temperature flexibility | ASTM D 2671 | NO crack@-55℃X4hrs | ||
| Secant modulus | UL 224 | Max.173MPa | ||
| Electrical | Dielectric strength | UL 224 | Min. 2500V/1min | |
| Volume resistivity | ASTM D 257 | Min 1X10 ¹⁴Ω-㎝ | ||
| Chemical | Copper corrosion | UL 224 158℃/168hrs | No corrosion | |
| Copper stability Elongation | No sign of degradation Min. 100% | |||
| Flammability(VW-1) | UL 224 | Pass | ||
STANDARD SIZE
| SIZE | INSIDE DIAMETER | WALL THICKNESS | LENGTH | FORM | ||
| as supplied (AVERAGE) | after recovery (MAX) | as supplied (NOM) | after recovery (MIN) | |||
| 1.0㎜ | 1.2㎜ | 0.50㎜ | 0.20㎜ | 0.36㎜ | 200ｍ | Round |
| 1.2㎜ | 1.4㎜ | 0.60㎜ | 0.20㎜ | 0.36㎜ | 200ｍ | Round |
| 1.5㎜ | 2.0㎜ | 0.75㎜ | 0.20㎜ | 0.44㎜ | 200ｍ | Round |
| 2.0㎜ | 2.5㎜ | 1.00㎜ | 0.20㎜ | 0.44㎜ | 100ｍ | Round |
| 2.5㎜ | 3.0㎜ | 1.25㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 3.0㎜ | 3.4㎜ | 1.50㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 3.5㎜ | 3.9㎜ | 1.75㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 4.0㎜ | 4.4㎜ | 2.00㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 4.5㎜ | 5.0㎜ | 2.25㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 5.0㎜ | 5.6㎜ | 2.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 6.0㎜ | 6.5㎜ | 3.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 7.0㎜ | 7.7㎜ | 3.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 8.0㎜ | 8.6㎜ | 4.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 9.0㎜ | 9.8㎜ | 4.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 10.0㎜ | 10.4㎜ | 5.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 11.0㎜ | 11.4㎜ | 5.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 12.0㎜ | 12.5㎜ | 6.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 13.0㎜ | 13.7㎜ | 6.50㎜ | 0.30㎜ | 0.69㎜ | 100ｍ | Flat |
| 14.0㎜ | 14.4㎜ | 7.00㎜ | 0.30㎜ | 0.69㎜ | 100ｍ | Flat |
| 15.0㎜ | 15.6㎜ | 7.50㎜ | 0.30㎜ | 0.69㎜ | 100ｍ | Flat |
| 16.0㎜ | 16.7㎜ | 8.00㎜ | 0.30㎜ | 0.69㎜ | 50ｍ | Flat |
| 18.0㎜ | 19.3㎜ | 9.00㎜ | 0.35㎜ | 0.77㎜ | 50ｍ | Flat |
| 20.0㎜ | 21.7㎜ | 10.0㎜ | 0.40㎜ | 0.77㎜ | 50ｍ | Flat |
| 22.0㎜ | 23.4㎜ | 11.0㎜ | 0.40㎜ | 0.77㎜ | 50ｍ | Flat |
| 25.0㎜ | 25.5㎜ | 12.5㎜ | 0.45㎜ | 0.87㎜ | 50ｍ | Flat |
| 28.0㎜ | 29.0㎜ | 14.0㎜ | 0.45㎜ | 0.87㎜ | 50ｍ | Flat |
| 30.0㎜ | 31.0㎜ | 15.0㎜ | 0.50㎜ | 0.87㎜ | 50ｍ | Flat |
| 38.0㎜ | 39.0㎜ | 19.0㎜ | 0.50㎜ | 0.97㎜ | 30ｍ | Flat |
| 50.0㎜ | 51.0㎜ | 25.0㎜ | 0.50㎜ | 0.97㎜ | 30ｍ | Flat |
| 75.0mm | 80.0mm | 41.0mm | 0.70mm | 1.46mm | 25m | Flat |
| 100.0mm | 100.0mm | 51.0mm | ||||
| 3/64inch | 1.4㎜ | 0.60㎜ | 0.20㎜ | 0.36㎜ | 200ｍ | Round |
| 1/16inch | 2.0㎜ | 0.75㎜ | 0.20㎜ | 0.44㎜ | 200ｍ | Round |
| 3/32inch | 2.5㎜ | 1.00㎜ | 0.20㎜ | 0.44㎜ | 100ｍ | Round |
| 1/8inch | 3.4㎜ | 1.50㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 3/16inch | 5.0㎜ | 2.25㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 1/4inch | 6.5㎜ | 3.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 3/8inch | 9.8㎜ | 4.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 1/2inch | 12.5㎜ | 6.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 3/4inch | 19.3㎜ | 9.00㎜ | 0.35㎜ | 0.77㎜ | 50ｍ | Flat |
| 1inch | 25.5㎜ | 12.5㎜ | 0.40㎜ | 0.87㎜ | 50ｍ | Flat |
| 11/2inch | 39.0㎜ | 19.0㎜ | 0.50㎜ | 0.97㎜ | 30ｍ | Flat |
| 2inch | 51.0㎜ | 25.0㎜ | 0.50㎜ | 0.97㎜ | 30ｍ | Flat |
- Special order size are available upon request
- Wall thickness will be less if tubing recovery is restricted during shrinkage

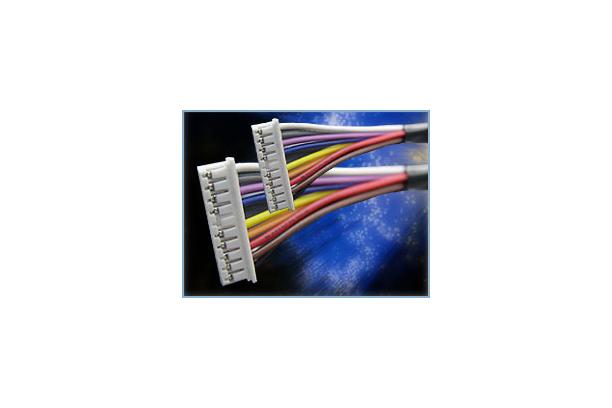

Applications field
