Product Name
Heat Shrinkable Tube
Model Name
KUHS-225G-YG
Size
-
Weight
-
Product Details
Applications

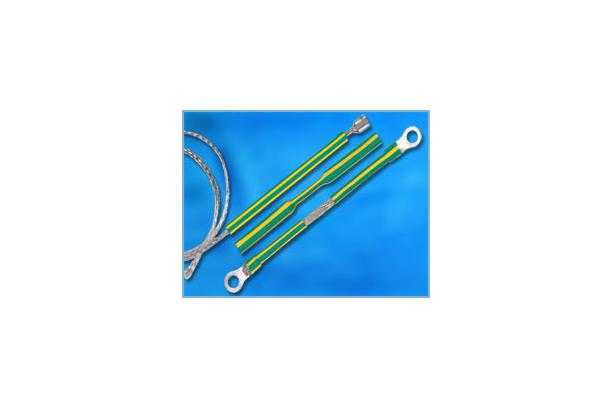

KUHS-225G-YG is a designed for all general purpose application such as the Insulation and strain relief of electrical connection and termination, light-duty Harnessing, bundling of wires and used to identify "ground"on wires and in Cables.
Features
- Shrink ratio : 2:1
- Minimum shrink temperature : 90℃
- Operating temperature range : -55℃ to 125℃
- Flammability : UL VW-1 , 600V , 125℃ , except clear
- UL224
Ordering Information
- Standard color : Yellow/Green stripe
- Standard packaging : On spools
- Ordering description : specify product name, size, and color [ex. KUHS-225G-YG 3.0mm Yellow/Green]
SPECIFICATION VALUES
| Properties | Test Methods | Values | ||
| Physical | Unaged | Tensile strength | ASTM D-412 | Min. 1.1kgf/㎟ |
| Elongation | UL 224 | Min. 200% | ||
| Aged | Tensile strength | ASTM D 412 UL 224 158℃/168hrs | Min. 0.8kgf/㎟ | |
| Elongation | Min. 100% | |||
| Heat shock | UL 224 | Pass@250℃X4hrs | ||
| Low temperature flexibility | ASTM D 2671 | NO crack@-55℃X4hrs | ||
| Secant modulus | UL 224 | Max.173MPa | ||
| Electrical | Dielectric strength | UL 224 | Min. 2500V/1min | |
| Volume resistivity | ASTM D 257 | Min 1X10¹⁴Ω-㎝ | ||
| Chemical | Copper corrosion | UL 224 158℃/168hrs | No corrosion | |
| Copper stability Elongation | No sign of degradation Min. 100% | |||
| Flammability(VW-1) | UL 224 | Pass | ||
STANDARD SIZE
| SIZE | INSIDE DIAMETER | WALL THICKNESS | STANDARD LENGTH(M) | ||
| as supplied (AVERAGE) | after recovery (MAX) | as supplied (NOM) | after recovery (MIN) | ||
| 3.0㎜ | 3.4㎜ | 1.50㎜ | 0.25㎜ | 0.51㎜ | 100ｍ |
| 6.0㎜ | 6.5㎜ | 3.00㎜ | 0.25㎜ | 0.58㎜ | 100ｍ |
| 9.0㎜ | 9.8㎜ | 4.50㎜ | 0.25㎜ | 0.64㎜ | 100ｍ |
| 12.0㎜ | 12.5㎜ | 6.00㎜ | 0.25㎜ | 0.64㎜ | 100ｍ |
| 16.0㎜ | 16.7㎜ | 8.00㎜ | 0.3㎜ | 0.68㎜ | 50ｍ |
| 18.0㎜ | 19.3㎜ | 9.00㎜ | 0.35㎜ | 0.76㎜ | 50ｍ |
| 25.0㎜ | 25.5㎜ | 12.5㎜ | 0.45㎜ | 0.89㎜ | 50ｍ |
| 38.0㎜ | 39.0㎜ | 19.0㎜ | 0.50㎜ | 1.00㎜ | 30ｍ |
- Special order size are available upon request
