Product Name

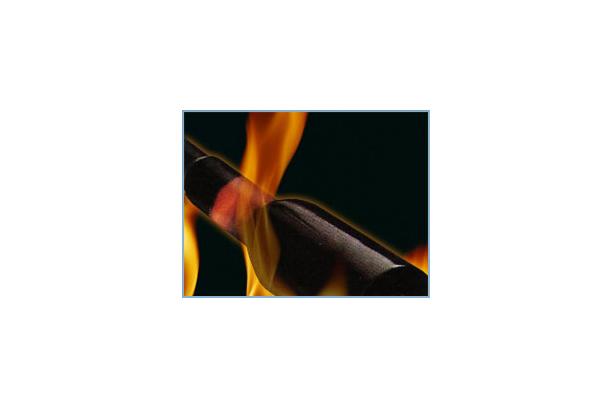

Heat Shrinkable Tube
Model Name
KUHS-MW
Size
-
Weight
-
Product Details
Applications
KUHS-MW is a designed for insulation and sealing cable splices electrical connections, jacket repairs and terminations.
It is suitable for submersible, direct-buried installations, or wherever mechanical protection is required in an electrical insulation system.
Features
- Shrink ratio : 3:1
- Minimum shrink temperature : 120℃
- Operating temperature range : -55℃ to 105℃
- Non-flame retardant : 1㎸ , except clear
Ordering Information
- Standard color : Black (*special colors are available upon request)
- Standard packaging : In 1.2meter[4foot lengths]
- Ordering description : specify product name, size, and color [ex. KUHS-MW 10/3 Black]
SPECIFICATION VALUES
| Properties | Test Methods | Values | ||
| Physical | Unaged | Tensile strength | ASTM D412 ASTM D 2671 | Min. 1.4kgf/㎟ |
| Elongation | Min. 350% | |||
| Aged | Tensile strength | ASTM D 412 ASTM D 2671 158℃/168hrs | Min. 1.2kgf/㎟ | |
| Elongation | Min. 300% | |||
| Low temperature flexibility | ASTM D 2671 | NO crack@-55℃X4hrs | ||
| Heat shock | ASTM D 2671 | Pass@225℃X4hrs | ||
| Thermal endurance | IEC 60216 | T1/120℃ | ||
| Electrical | Dielectric strength | ASTM D 149 | Min. 14㎸/㎜ | |
| Volume resistivity | IEC 60093 | Min 1X1013Ω-㎝ | ||
| Chemical | Water absorption | ASTM D 570 | Max0.1%@23℃X14days | |
| Resistance to Fungi | ASTM G 21 | Pass rating 1 | ||
| Fluide resistance Retention of Tensile strength Retention of Elongation | 24hrs in ASTM NO.2 oil Min. 75% Min. 75% | |||
STANDARD SIZE
| SIZE | INSIDE DIAMETER | WALL THICKNESS | STANDARD LENGTH (M) | |
| as supplied (NOM) | after recovery (MAX) | Minimum Total wall after heating | ||
| 10.0㎜ | 10.0㎜ | 3.0㎜ | 1.70㎜ | 1.2ｍ |
| 12.0㎜ | 12.5㎜ | 4.0㎜ | 2.00㎜ | 1.2ｍ |
| 16.0㎜ | 16.0㎜ | 5.0㎜ | 2.20㎜ | 1.2ｍ |
| 19.0㎜ | 19.0㎜ | 6.0㎜ | 2.50㎜ | 1.2ｍ |
| 25.0㎜ | 25.0㎜ | 8.0㎜ | 2.50㎜ | 1.2ｍ |
| 28.0㎜ | 28.0㎜ | 9.0㎜ | 2.50㎜ | 1.2ｍ |
| 33.0㎜ | 33.0㎜ | 11.0㎜ | 2.50㎜ | 1.2ｍ |
| 38.0㎜ | 38.0㎜ | 12.0㎜ | 2.50㎜ | 1.2ｍ |
| 50.0㎜ | 50.0㎜ | 16.0㎜ | 2.70㎜ | 1.2ｍ |
| 63.0㎜ | 63.0㎜ | 19.0㎜ | 2.80㎜ | 1.2ｍ |
| 75.0㎜ | 75.0㎜ | 22.0㎜ | 3.00㎜ | 1.2ｍ |
| 85.0㎜ | 85.0㎜ | 25.0㎜ | 3.00㎜ | 1.2ｍ |
| 95.0㎜ | 95.0㎜ | 25.0㎜ | 3.00㎜ | 1.2ｍ |
| 115.0㎜ | 115.0㎜ | 34.0㎜ | 3.00㎜ | 1.2ｍ |
- Special order size are available upon request
