Manufacturer
UNICHEM
Brand
-
SKU
125437
Product Name

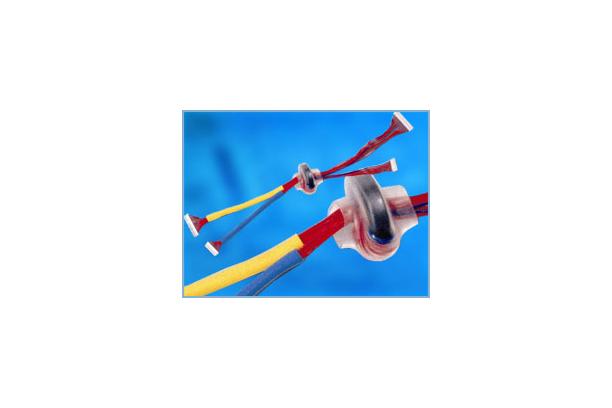

Heat Shrinkable Tube
Model Name
KUHS-105
Size
-
Weight
-
Product Details
Applications
KUHS-105 is designed for all general purpose application such as the Insulation and strain relief of electrical connection and termination, light-duty Harnessing, jacketing, bundling, of wires, and identification of cables, electronics components
Features
- Shrink ratio : 2:1
- Minimum shrink temperature : 90℃
- Operating temperature range : -55℃ to 105℃
- UL224[File NO. : E157822, 600V, 105℃ ]
Ordering Information
- Standard color : Clear (*special colors are available upon request)
- Standard packaging : On spools
- Ordering description : specify product name, size, and color [ex. KUHS-105 3.0mm Clear]
SPECIFICATION VALUES
| Properties | Test Methods | Values | ||
| Physical | Unaged | Tensile strength | ASTM D-412 | Min. 1.1kgf/㎟ |
| Elongation | UL 224 | Min. 200% | ||
| Aged | Tensile strength | ASTM D 412 UL 224 158℃/168hrs | Min. 0.8kgf/㎟ | |
| Elongation | Min. 100% | |||
| Heat shock | UL 224 | Pass@250℃X4hrs | ||
| Low temperature flexibility | ASTM D 2671 | NO crack@-55℃X4hrs | ||
| Secant modulus | UL 224 | Max.173MPa | ||
| Electrical | Dielectric strength | UL 224 | Min. 2500V/1min | |
| Volume resistivity | UL 224 | Min 1X10¹⁴Ω-㎝ | ||
| Chemical | Copper corrosion | MIL-I-23053 158℃/168hrs | No corrosion | |
| Copper stability Elongation | UL 224 158℃/168hrs | No sign of degradtion Min. 100% | ||
STANDARD SIZE
| SIZE | INSIDE DIAMETER | WALL THICKNESS | LENGTH | FORM | ||
| as supplied (AVERAGE) | after recovery (MAX) | as supplied (NOM) | after recovery (MIN) | |||
| 1.0㎜ | 1.2㎜ | 0.50㎜ | 0.20㎜ | 0.36㎜ | 200ｍ | Round |
| 1.2㎜ | 1.4㎜ | 0.60㎜ | 0.20㎜ | 0.36㎜ | 200ｍ | Round |
| 1.5㎜ | 2.0㎜ | 0.75㎜ | 0.20㎜ | 0.44㎜ | 200ｍ | Round |
| 2.0㎜ | 2.5㎜ | 1.00㎜ | 0.20㎜ | 0.44㎜ | 100ｍ | Round |
| 2.5㎜ | 3.0㎜ | 1.25㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 3.0㎜ | 3.4㎜ | 1.50㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 3.5㎜ | 3.9㎜ | 1.75㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 4.0㎜ | 4.4㎜ | 2.00㎜ | 0.25㎜ | 0.44㎜ | 100ｍ | Round |
| 4.5㎜ | 5.0㎜ | 2.25㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 5.0㎜ | 5.6㎜ | 2.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 6.0㎜ | 6.5㎜ | 3.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Round |
| 7.0㎜ | 7.7㎜ | 3.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 8.0㎜ | 8.6㎜ | 4.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 9.0㎜ | 9.8㎜ | 4.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 10.0㎜ | 10.4㎜ | 5.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 11.0㎜ | 11.4㎜ | 5.50㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 12.0㎜ | 12.5㎜ | 6.00㎜ | 0.25㎜ | 0.56㎜ | 100ｍ | Flat |
| 13.0㎜ | 13.7㎜ | 6.50㎜ | 0.30㎜ | 0.69㎜ | 100ｍ | Flat |
| 14.0㎜ | 14.4㎜ | 7.00㎜ | 0.30㎜ | 0.69㎜ | 100ｍ | Flat |
| 15.0㎜ | 15.6㎜ | 7.50㎜ | 0.30㎜ | 0.69㎜ | 100ｍ | Flat |
| 16.0㎜ | 16.7㎜ | 8.00㎜ | 0.30㎜ | 0.69㎜ | 50ｍ | Flat |
| 18.0㎜ | 19.3㎜ | 9.00㎜ | 0.35㎜ | 0.77㎜ | 50ｍ | Flat |
| 20.0㎜ | 21.7㎜ | 10.0㎜ | 0.40㎜ | 0.77㎜ | 50ｍ | Flat |
| 22.0㎜ | 23.4㎜ | 11.0㎜ | 0.40㎜ | 0.77㎜ | 50ｍ | Flat |
| 25.0㎜ | 25.5㎜ | 12.5㎜ | 0.45㎜ | 0.87㎜ | 50ｍ | Flat |
| 28.0㎜ | 29.0㎜ | 14.0㎜ | 0.45㎜ | 0.87㎜ | 50ｍ | Flat |
| 30.0㎜ | 31.0㎜ | 15.0㎜ | 0.50㎜ | 0.87㎜ | 50ｍ | Flat |
| 38.0㎜ | 39.0㎜ | 19.0㎜ | 0.50㎜ | 0.97㎜ | 30ｍ | Flat |
| 50.0㎜ | 51.0㎜ | 25.0㎜ | 0.50㎜ | 0.97㎜ | 30ｍ | Flat |
- Special order size are available upon request
