Product Name

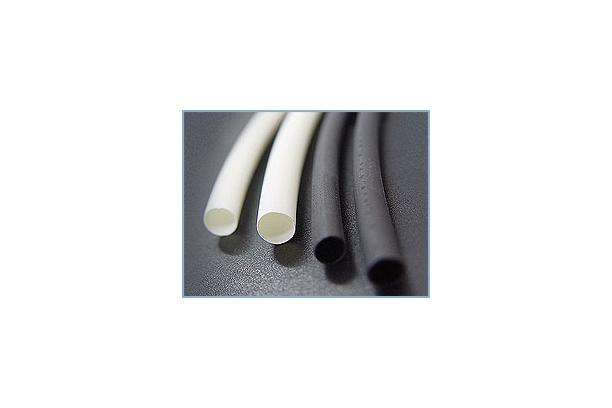

Heat Shrinkable Tube
Model Name
KUHS-325G
Size
-
Weight
-
Product Details
Applications
KUHS-325G is designed for all general purpose application such as the Insulation and strain relief of electrical connection and termination, light-duty Harnessing, jacketing, bundling, and color coding of wires. few sizes cover a wide range of diameters, allowing reduced inventory and this tubing accommodates awkward, irregular shapes.
Features
- Shrink ratio : 3:1
- Minimum shrink temperature : 90℃
- Operating temperature range : -55℃ to 125℃
- Flammability : UL VW-1 , 600V , 125℃ , except clear
- UL224[REF.]
Ordering Information
- Standard color : Black (*special colors are available upon request)
- Standard packaging : On spools
- Ordering description : specify product name, size, and color [ex. KUHS-325G 3.0mm Black]
SPECIFICATION VALUES
| Properties | Test Methods | Values | ||
| Density | ASTM D-792 | Max. 1.40g/㎠ | ||
| Physical | Unaged | Tensile strength | ASTM D-638 MIL-I-23053 | Min. 1.1kgf/㎟ |
| Elongation | Min. 200% | |||
| Aged | Tensile strength | ASTM D 412 MIL-I-23053 175℃/168hrs | Min. 0.8kgf/㎟ | |
| Elongation | Min. 100% | |||
| Heat shock | MIL-I-23053 | Pass@250℃X4hrs | ||
| Low temperature flexibility | MIL-I-23053 | NO crack@-55℃X4hrs | ||
| Secant modulus | ASTM D-882 | Max.173MPa | ||
| Electrical | Dielectric strength | ASTM D-2671 | Min. 19.7㎸/mm | |
| Volume resistivity | ASTM D 876 | Min 1X10¹⁴Ω-㎝ | ||
| Chemical | Fluid | Tensile strength | MIL-I-23053 24℃/24hrs | Min. 0.7kgf/㎟ |
| resistance | Dielectric strength | Min. 15.8㎸/mm | ||
| copper corrosion | MIL-I-23053 | NO corrosions | ||
| copper Mirror corrosion | 175℃/168hrs | NO corrosions | ||
| Flammability(VW-1) | UL 224 | Pass | ||
| Fungus resistance | ASTM G-21 | NO growth | ||
STANDARD SIZE
| SIZE | INSIDE DIAMETER | WALL THICKNESS | STANDARD LENGTH (M) | |
| as supplied (NOM) | after recovery (MAX) | after recovery (Nominal) | ||
| 3.0㎜ | 3.0㎜ | 1.0㎜ | 0.55㎜ | 100ｍ |
| 4.5㎜ | 4.5㎜ | 1.5㎜ | 0.55㎜ | 100ｍ |
| 6.0㎜ | 6.0㎜ | 2.0㎜ | 0.65㎜ | 100ｍ |
| 9.0㎜ | 9.0㎜ | 3.0㎜ | 0.75㎜ | 100ｍ |
| 12.0㎜ | 12.0㎜ | 4.0㎜ | 0.75㎜ | 100ｍ |
| 18.0㎜ | 18.0㎜ | 6.0㎜ | 0.80㎜ | 100ｍ |
| 24.0㎜ | 24.0㎜ | 8.0㎜ | 1.00㎜ | 100ｍ |
| 38.0㎜ | 38.0㎜ | 13.0㎜ | 1.15㎜ | 100ｍ |
- Special order size are available upon request
- Wall thickness will be less if tubing recovery is restricted during shrinkage
