Product Name
PVC TUBE
Model Name
UNIVP-300, UNIVP-600
Size
-
Weight
-
Product Details
Applications

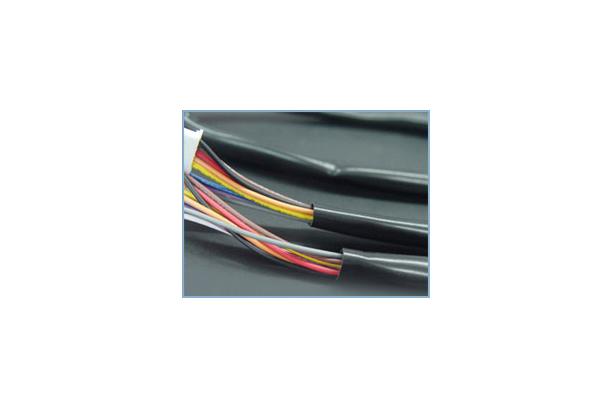

UNIVP-300/600 is a flexible, flame retardant PVC tubing.
these are suitable for insulation of terminal lug, electrical parts and used for protective covering for wires.
Features
- Characteristics
* Rating: UNIVP-300: 300V, 105℃
UNIVP-600: 600V, 105℃
- Standard
UL224 File NO. : E157822
CSA 22.2 NO. : 217824
- Material
Flexible, Semi-rigid, flame-retardant Polyvinyl Chloride tubing
Ordering Information
- Standard color : Black, Clear (*special colors are available upon request)
- Standard packaging : On Reels (*on spools are available upon request)
- Ordering description : specify product name, size, and color [ex. PVC-TUBE 3 AWG Clear]
STANDARD SIZE
| SIZE (AWG) | Inside Dia. (mm) | Cat. NO. UNIVP-600 600V, 105℃ | Cat. NO. UNIVP-300 300V, 105℃ | ||||
| Nominal Thickness (mm) | Minimum Thickness (mm) | Nominal Dia (mm) | Nominal Thickness (mm) | Minimum Thickness (mm) | Nominal Dia (mm) | ||
| 24 | 0.50 | 0.57 | 0.51 | 1.64 | 0.40 | 0.34 | 1.30 |
| 22 | 0.65 | 0.57 | 0.51 | 1.79 | 0.40 | 0.34 | 1.50 |
| 20 | 0.85 | 0.57 | 0.51 | 1.99 | 0.40 | 0.34 | 1.65 |
| 19 | 0.90 | 0.57 | 0.51 | 2.04 | 0.40 | 0.34 | 1.00 |
| 18 | 1.00 | 0.57 | 0.51 | 2.14 | 0.40 | 0.34 | 1.80 |
| 17 | 1.20 | 0.62 | 0.56 | 2.44 | 0.40 | 0.34 | 2.00 |
| 16 | 1.30 | 0.62 | 0.56 | 2.54 | 0.40 | 0.34 | 2.10 |
| 15 | 1.50 | 0.62 | 0.56 | 2.75 | 0.40 | 0.34 | 2.30 |
| 14 | 1.60 | 0.62 | 0.56 | 2.84 | 0.40 | 0.34 | 2.40 |
| 13 | 1.80 | 0.62 | 0.56 | 3.04 | 0.40 | 0.34 | 2.60 |
| 12 | 2.0 | 0.62 | 0.56 | 3.24 | 0.40 | 0.34 | 2.80 |
| 11 | 2.30 | 0.62 | 0.56 | 3.52 | 0.40 | 0.34 | 3.10 |
| 10 | 2.60 | 0.62 | 0.56 | 3.84 | 0.40 | 0.34 | 3.40 |
| 9 | 2.90 | 0.62 | 0.56 | 4.14 | 0.50 | 0.44 | 3.90 |
| 8 | 3.30 | 0.62 | 0.56 | 4.54 | 0.50 | 0.44 | 4.30 |
| 7 | 3.70 | 0.62 | 0.56 | 4.94 | 0.50 | 0.44 | 4.70 |
| 6 | 4.10 | 0.62 | 0.56 | 5.34 | 0.50 | 0.44 | 5.10 |
| 5 | 4.60 | 0.62 | 0.56 | 5.84 | 0.50 | 0.44 | 5.60 |
| 4 | 5.20 | 0.62 | 0.56 | 6.44 | 0.50 | 0.44 | 6.20 |
| 3 | 5.80 | 0.62 | 0.56 | 7.04 | 0.50 | 0.44 | 6.80 |
| 2 | 6.50 | 0.62 | 0.56 | 7.94 | 0.50 | 0.44 | 7.50 |
| 1 | 7.30 | 0.62 | 0.56 | 8.54 | 0.50 | 0.44 | 8.30 |
| 0 | 8.20 | 0.62 | 0.56 | 9.44 | 0.50 | 0.44 | 9.20 |
| 5/6inch | 8.00 | 0.62 | 0.56 | 9.24 | 0.62 | 0.56 | 9.24 |
| 6/16inch | 9.50 | 0.62 | 0.56 | 10.74 | 0.62 | 0.56 | 10.74 |
| 7/16inch | 11.00 | 0.62 | 0.56 | 12.24 | 0.62 | 0.56 | 12.24 |
| 8/16inch | 12.50 | 0.62 | 0.56 | 13.74 | 0.62 | 0.56 | 13.74 |
| 9/16inch | 14.00 | 0.77 | 0.71 | 15.54 | 0.77 | 0.71 | 15.54 |
| 10/16inch | 16.00 | 0.77 | 0.71 | 17.54 | 0.77 | 0.71 | 17.54 |
| 12/16inch | 19.00 | 0.83 | 0.77 | 20.66 | 0.83 | 0.77 | 20.66 |
| 14/16inch | 22.00 | 0.83 | 0.77 | 23.66 | 0.83 | 0.77 | 23.66 |
| 1inch | 25.00 | 0.83 | 0.77 | 26.66 | 0.83 | 0.77 | 26.66 |
- Special order size are available upon request
- Wall thickness will be less if tubing recovery is restricted during shrinkage
