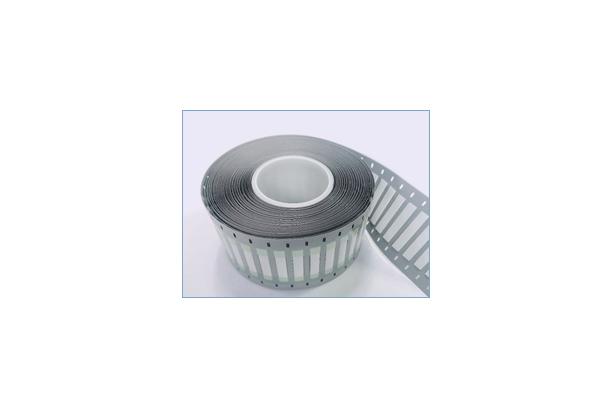

product Image
WIRE-MARKER
Model Name
KUHS-225G
Series
Wire Maker
Data
-
Manufacturer information
provider logo
UNICHEM

Heat Shrinkable Tube Manfuacturer, Non Shrinkable Tube, KUHS Series, PVC Tube, END CAPS and More

Problem with product info?
Update request
Manufacturer
UNICHEM
Brand
-
SKU
125442
Product Name
WIRE-MARKER
Model Name
KUHS-225G
Size
-
Weight
-
Product Details

Applications

Wire Marker is designed for wire and cable identification Hologen free, flame-retardant, thin walled, flexible heat shrinkable polyolefin tubing to form a permanent insulation.

Tubing is suitable for underground railways, marine, military, aerospace application


Features

  • Shrink ratio : 2:1
  • Minimum shrink temperature : 90℃
  • Operating temperature range : -55℃ to 125℃
  • Flammability : UL VW-1 , 600V , 125℃
  • UL224


Ordering Information

  • Standard color :White (*special colors are available upon request)
  • Standard packaging : On spools
  • Ordering description : specify product name, size, and color [ex. KUHS-225G 3.0mm White]


SPECIFICATION VALUES

 PropertiesTest MethodsValues
PhysicalUnagedTensile strengthASTM D-412Min. 1.1kgf/㎟
ElongationUL 224Min. 200%
AgedTensile strengthASTM D 412 UL 224 158℃/168hrsMin. 0.8kgf/㎟
ElongationMin. 100%
Heat shockUL 224Pass@250℃X4hrs
Low temperature flexibilityASTM D 2671NO crack@-55℃X4hrs
Secant modulusUL 224Max.173MPa
ElectricalDielectric strengthUL 224Min. 2500V/1min
Volume resistivityASTM D 257Min 1X10 ¹⁴Ω-㎝
ChemicalCopper corrosionUL 224
158℃/168hrs
No corrosion
Copper stability
Elongation
No sign of degradation
Min. 100%
Flammability(VW-1)UL 224Pass


STANDARD SIZE

SIZEAs Supplied(mm)As Recovery(mm)Small Box
Packing
(PCS/Box)
remark
Inside
Diameter
Wall
Thickness
Inside
Diameter
Wall
Thickness
3mm3.4±0.20.18±0.051.50.40±0.101,000
4.5mm5.0±0.20.25±0.052.30.50±0.10

1,000


6.0mm6.5±0.30.28±0.053.00.55±0.10500
9.0mm9.8±0.30.30±0.084.50.60±0.10500
12.0mm12.5±0.30.50±0.106.00.60±0.10500
18.0mm19.3±0.50.40±0.159.00.80±0.15250
25.0mm25.5±0.50.50±0.1512.50.90±0.15250
38.0mm39.0±1.00.55±0.1520.01.00±0.15250
  • Special order size are available upon request
