Semi Auto Spot Welding M/C
Model Name
USW-5CT
Series
Spot Welding Line
Data
USW-5CT
Manufacturer information
provider logo
Union TechAutomotive filter equipment manufacturer, Union Tech, Seaming, Tapping, Clipping
Problem with product info?
Update request
Manufacturer
Union Tech
Brand
-
SKU
33774
Product Name
Semi Auto Spot Welding M/C
Model Name
USW-5CT
Size
-
Weight
-
Product Details

Union Tech Semi Auto Spot Welding M/C USW-5CT

TECHNICAL DESCRIPTION

ㆍTYPE : CONDENSER PROJECTION WELDING

ㆍUSED : RELIEF VALVE CAP & VALVE SPRING

ㆍPRODUCTIVE CAPACITY : 20 pcs/ min

ㆍENDCAP DIAMETER : 60~95mm

ㆍENDCAP HEIGHT : 5~15mm

ㆍELECTRIC POWER : 220V x 2P x 50/60Hz

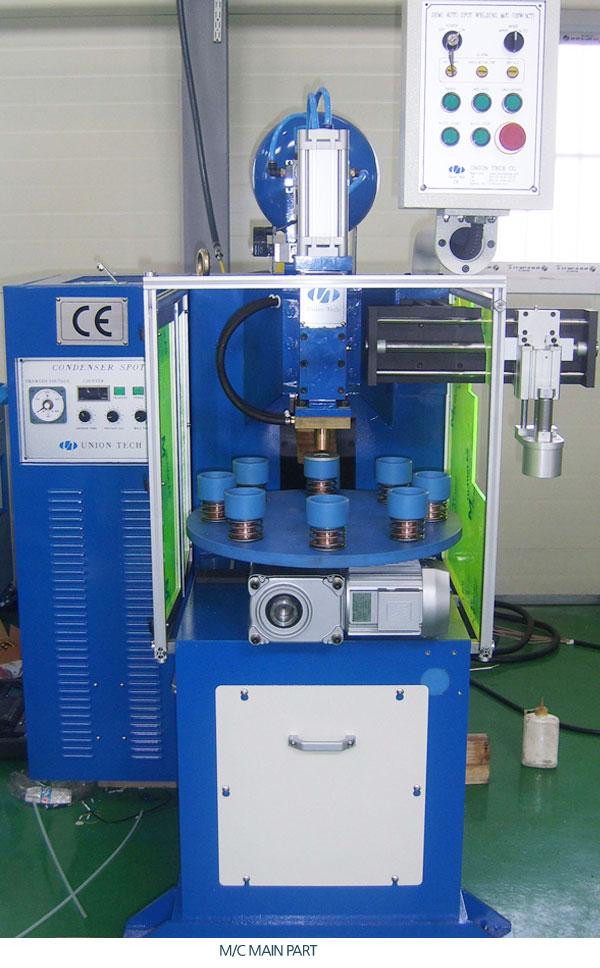

ㆍSUPPLYING AIR PRESSURE : 5 kg/Union Tech Semi Auto Spot Welding M/C USW-5CT 1

ㆍELECTRIC POWER CAPACITY : 5 KVA

ㆍCHARGING SPEED : 0.2 - 0.3sec.

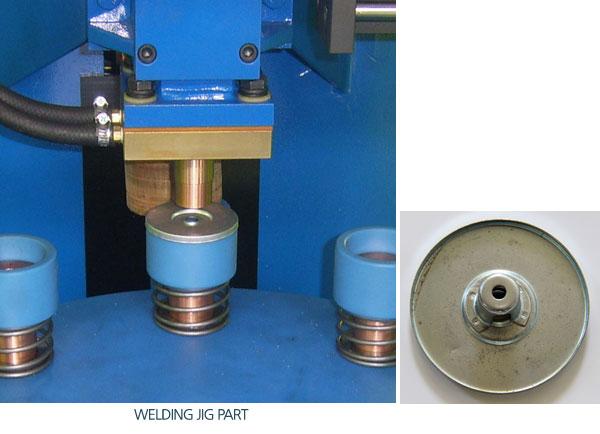

ㆍCONDENSER QUALITY : 30,000Union Tech Semi Auto Spot Welding M/C USW-5CT 2

ㆍCOOLING SYSTEM : COMBINED WATER COOLING AND AIR COOLING

ㆍTURN TABLE : 8 STATION + 1 HEAD

ㆍMACHINE SIZE & WEIGHT : W1160 x L1200 x H1610 & 1500 kg

ㆍLOADING && AUTO UNLOADING SYSTEM

APPLICATION

ㆍTHIS MACHINE DESIGNED TO WELD THE RELIEF VALVE CAP & VALVE SPRING.

OPTIONAL PAPRT

ㆍWELDING JIG & PLASTIC JIG

ㆍUNLOADING CONVEYOR
