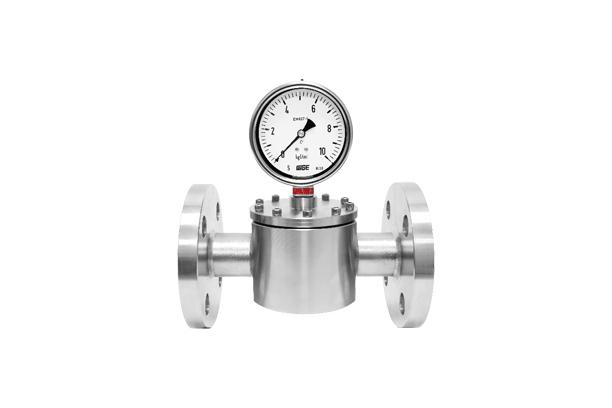

Pressure Gauge With Diaphragm Seal
Model Name
P761
Series
General Pressure Gauge•Switch•Recorder
Data
Datasheet-WISE-General Pressure Gauge•Switch•Recorder-Pressure Gauge With Diaphragm Seal-P761, P762, P763
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Brand
-
SKU
141690
Product Name
Pressure Gauge With Diaphragm Seal
Model Name
P761, P762, P763
Size
-
Weight
-
Product Details

P761 (Pressure gauge with inline type diaphragm seal) P762 (Pressure gauge with extension type diaphragm seal) P763 (Pressure gauge with pad type diaphragm seal)



Service intended

Pressure gauge with diaphragm seal are suitable for the situation where the process medium would corrode the instrument connection and pressure sensing element. Furthermore, this type of gauge is suitable for corrosive, highly viscous, crystallising or hot pressure media. Additionally, it is recommended to be used where the process medium might freeze or solidify the instrument connection and pressure sending element due to the ambient or process temperature change and where the process medium requires the flusing from the system to prevent any contamination.

Design Internal diaphragm
Accuracy Refer to gauge model
Suitable pressure range (MPa, kPa, bar) -0.1 ~ 0 to -0.1 ~ 2.5 MPa
0 ~ 0.1 to 0 ~ 35 MPa
Filling liquid Silicone oil
Working temperature Temperature rating of the diaphragm seals depends on the fill fluid, the diaphragm material and the lower housing material. Standard fill fluids are available for temperature range -20 ~ 200 ˚C
Diaphragm material Diaphragms are available in many corrosion resistant materials. Compatibility of selected material and process fluid is the responsibility of user
Temperature effect Accuracy at temperature above and below the reference temperature (20 ˚C) will be effected by approximately
±0.5 % per 10 ˚C of full scale



Standard features

Upper flange (Gauge side) Stainless steel (304SS, 316SS)
Diaphragm 316L SS, Monel, Hastelloy-C Titanium, Tantalum, Nickel, Alloy20
Under flange and process flange Stainless steel (304SS, 304L SS, 316SS, 316L SS) Monel, Hastelloy-C, Titanium, Nickel
Option Diaphragm and under flange are available in PTFE coating Under flange (Process side) are available in purging
plug or heating/cooling jacket
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
