product Image

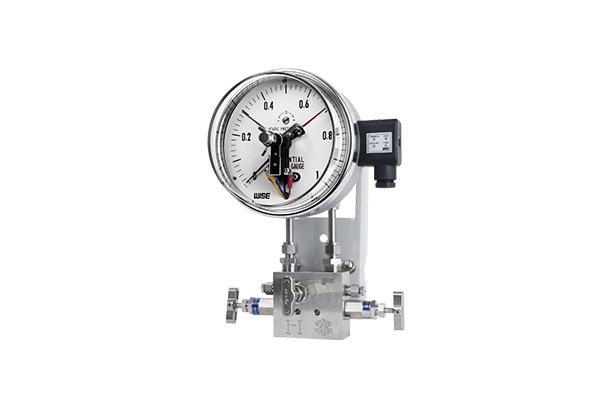

Differential pressure gauge with Electrical contact
Model Name
P601
Series
Differential Pressure Gauge•Switch
Data
Datasheet-WISE-Differential Pressure Gauge•Switch-Differential pressure gauge with Electrical contact-P601, P602
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Brand
-
SKU
141737
Product Name
Differential pressure gauge with Electrical contact
Model Name
P601, P602
Size
-
Weight
-
Product Details

Service intended

P601 to P602 series are designed to measure differentialpressure from 5 kPa ro 1.5 MPa at Max. working pressureup to 5 MPa.P601 to P602 series are designed to control and alarm fordifferential pressure, providing right time to replace air andsluge filter during the process.

Nominal diameter 100 and 160 mm
Accuracy ±1.0% of full scale
±1.5% or ±1.6% of full scale
Scale range (MPa, kPa, bar) 0~30 kPa to 0~50 kPa
0~0.1 MPa to 0~1.5 MPa
Max. Working pressure (Static pressure) 5 MPa
Working temperature Ambient : -20~65°C
Fluid : Max. 100°C
Degree of protection EN60529/IEC529/IP65
Temperature effect Accuracy at temperature above and below the reference
temperature (20℃) will be effected by approximately
±0.5% per 10℃ of full scale



Standard features

Pressure connection Stainless steel (316SS)
Element Single Bellows
Stainless steel (316L SS)
Case Stainless steel (304SS)
Cover Stainless steel (304SS)
Bayonet type
Window Polycarbonate
Dial White aluminium with black graduations
Conduit connection M20 x 1.5P
Contact Contact rating: AC 230 V 0.12 A / 110 V 0.24A
DC 220 V 0.1 A / 110 V 0.2 A
Pointer Black painted aluminium alloy
Process connection ¼" NPT(F)
½" NPT(F) at 3-way and 5-way manifold valve
Standard accessories Mounting bracket for 2" pipe
mounting with silver gray finished steel
Optional
  • Remote seal
  • Mounting bracket with 316SS for 2" pipe mounting
  • 3-way manifold valve (316SS, Monel)
  • 5-way manifold valve (316SS, Monel)
