product Image

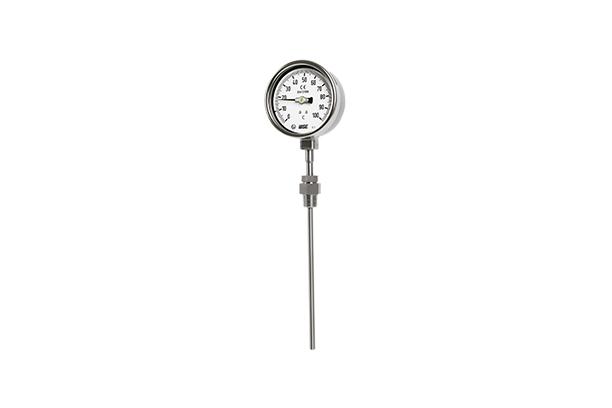

Euro gauge Direct reading thermometer
Model Name
T250
Series
Temperature Gauge•Switch•Recorder
Data
Datasheet-WISE-Temperature Gauge•Switch•Recorder-Euro gauge Direct reading thermometer-T250
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Brand
-
SKU
141757
Product Name
Euro gauge Direct reading thermometer
Model Name
T250
Size
-
Weight
-
Product Details

Service intended

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Nominal diameter 100 and 160 mm
Accuracy ±2.0 % of full scale
Measuring system (SAMA class ⅢB) Organic gas : 0 ~ 200 °C
Inert gas : -200 ~ 700 °C
Working range Maximum scale value



Standard features

Location of stem Bottom connection, direct Lower back connection, direct
Case 304SS
Cover 304SS
Bayonet type
Window Tempered safety glass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Stem 8.0, 10.0 and 12.0 mm
316SS and 316L SS
Stem,process connection ⅜", ½", ¾" PT, NPT and PF
Option Special accuracy, ±1.0 % of full scale
