product Image

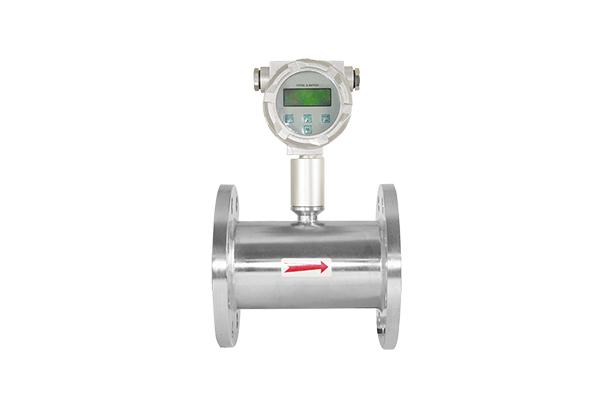

Turbine Flowmeter
Model Name
F901
Series
Flow Transmitter•Sight Glass•Indicator Switch
Data
Datasheet-WISE-Flow Transmitter•Sight Glass•Indicator Switch-Turbine Flowmeter-F901
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Brand
-
SKU
141841
Product Name
Turbine Flowmeter
Model Name
F901
Size
-
Weight
-
Product Details

Description

It offers a high accuracy and repeatable measurement under the most demanding conditions of oil and gas custody transfer applications. High accurate measurement is achieved by using a bladed rotor that turns at a speed proportional to rate of flow. The rotation of the rotor is sensed by electrical pickoffs mounted on the meter body, generating a pulsing voltage. The total number of pulses collected over a period of time represents the metered volume.



Specification

Process connection Flanged
Screwed
Size 10A ~ 250A
Material 304SS
316SS
316L SS
Pressure rating STD. 10 kgf/cm²
Max. 350 kgf/cm² (Option)
Temperature rating STD. 120 °C
Max. 200 °C (Option)
Accuracy ±1.0 % of full scale
Enclosure Ex d IIB T6
