Dry Running - Oil Free - Contact Free Design
: Simple Modular Construction
: Air cooled & Direct Driven
: Low maintenance - No wear
: High Efficiency - Continuous Duty
Applications
Packaging, CNC Routing, Wood Works, Pneumatic Conveying, Holding & Lifting, Pick and Place, Medical & Lab., Plastics Industries, Central Vacuum Systems
Safety : CE certified (DOC)
GENERAL DESCRIPTION

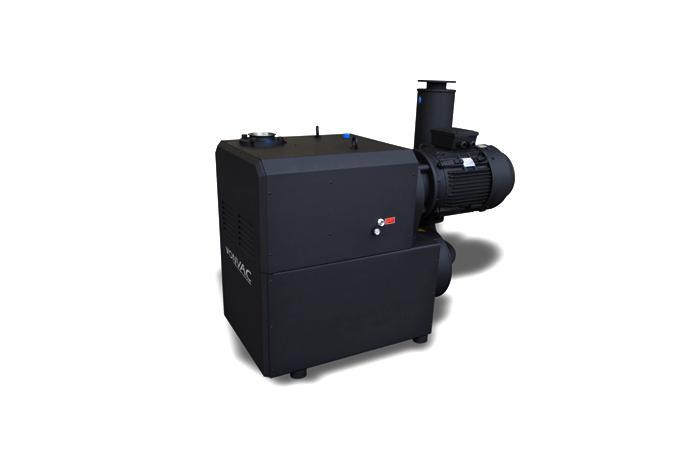

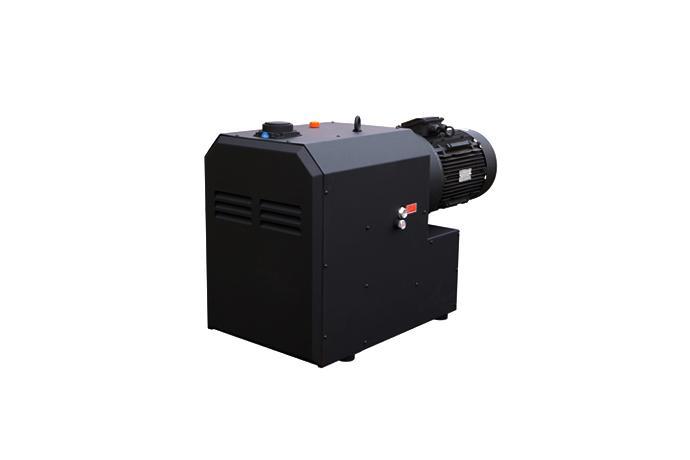

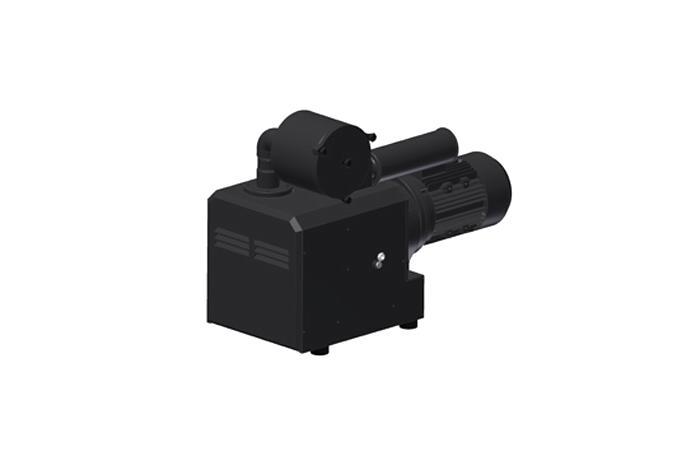

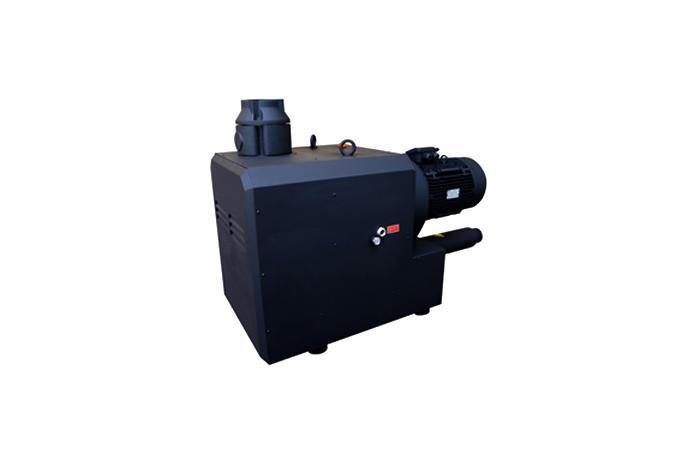

The VCX Series pumps are dry contact-less vacuum pumps with modular constructions consisting of compartments: pumping and gear chambers are separated by using labyrinth seals., As two claws rotate in opposite direction, the air will be sucked in the pumping chamber, compressed and discharged under pressure. In gear chamber, two gears for synchronizing of claws rotation will be placed with appropriate oil lubrication. A built in anti-suck back valve installed in inlet flange will prevent the air from flowing back into the vacuum chamber when the pump is shutdown. The pumps are directly driven by a flanged motor via a coupling.
Specifications
| Model | VCX 255 | VCX 305 | |
| M3 / Hour | 60Hz | 300 | 360 |
| 50Hz | 250 | 300 | |
| Ulti. Va. Max. | Torr | 722.5 Torr gage (50mbar abs) | |
| Ulti. Va. Conti. | Torr | 610 | |
| Kw | 60Hz | 5.5 | 6.6 |
| 50Hz | 4.3 | 5.5 | |
| RPM (MOTOR) | 60/50Hz | 3450/2850 | |
| Voltage Available | 208~230/460V, 220~240/380~420V, 400/690V | ||
| Inlet / Outlet Conn. | **BSP(G) | 2" | |
Performance Curve
