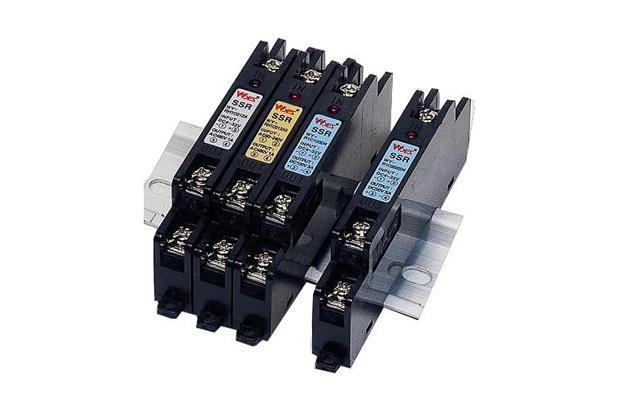

Socket & DIN-Rail type (AC & DC type)
Model Name
WYR1C01Z4
Series
Solid State Relay
Data
R_TYPE.dwg
Manufacturer information
provider logo
WOONYOUNGVarious electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131593
Product Name
Socket & DIN-Rail type (AC & DC type)
Model Name
WYR1C01Z4, WYR1C01Z40, WYRH1C01Z4, WYRH1C01Z40
Size
-
Weight
-
Product Details
Model No WYR1C01Z4 WYR1C01Z40 WYRH1C01Z4 WYRH1C01Z40
TYPE WYR-DIN-Rail type
Certification
Rating 220(R) 440VAC(RH)
Input 4VDC~32VDC 90VAC~240VAC
Output 220(R) 440VAC(RH)
Capacity 1A



Specifications and Features

Measuring 10mm in width, this product can be installed on the DIN rail. It features good workability and a contact check lamp (LED) through which power connection on the power input unit can be verified. This small SSR can be modularized for effective use.
