This product is manufactured by
WOONYOUNG
TOP
Model Name
WYL3H3C10Z4
Data
L3GH_10_80A0.dwg
Manufacturer information
WOONYOUNGVarious electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131651
Product Name

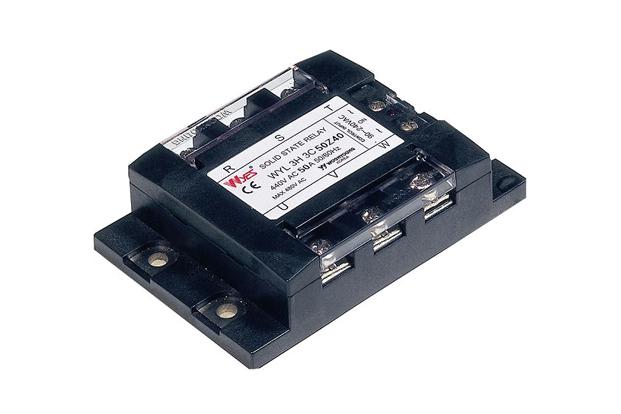

Solid State Relay (3P-AC Load type)
Model Name
WYL3H3C10Z4, WYL3H3C15Z4, WYL3H3C20Z4, WYL3H3C25Z4, WYL3H3C30Z4, WYL3H3C40Z4, WYL3H3C50Z4, WYL3H3C60Z4, WYL3H3C80Z4, WYL3H3C10Z40, WYL3H3C15Z40, WYL3H3C20Z40, WYL3H3C25Z40, WYL3H3C30Z40, WYL3H3C40Z40, WYL3H3C50Z40, WYL3H3C60Z40, WYL3H3C80Z40, WYL3H3C10R4, WYL3H3C15R4, WYL3H3C20R4, WYL3H3C25R4, WYL3H3C30R4, WYL3H3C40R4, WYL3H3C50R4, WYL3H3C60R4, WYL3H3C80R4, WYL3H3C10R40, WYL3H3C15R40, WYL3H3C20R40
Size
-
Weight
-
Product Details
| Model No | WYL3H3C10Z4 WYL3H3C15Z4 WYL3H3C20Z4 WYL3H3C25Z4 WYL3H3C30Z4 WYL3H3C40Z4 WYL3H3C50Z4 WYL3H3C60Z4 WYL3H3C80Z4 WYL3H3C10Z40 WYL3H3C15Z40 WYL3H3C20Z40 WYL3H3C25Z40 WYL3H3C30Z40 WYL3H3C40Z40 WYL3H3C50Z40 WYL3H3C60Z40 WYL3H3C80Z40 WYL3H3C10R4 WYL3H3C15R4 WYL3H3C20R4 WYL3H3C25R4 WYL3H3C30R4 WYL3H3C40R4 WYL3H3C50R4 WYL3H3C60R4 WYL3H3C80R4 WYL3H3C10R40 WYL3H3C15R40 WYL3H3C20R40 WYL3H3C25R40 WYL3H3C30R40 WYL3H3C40R40 WYL3H3C50R40 WYL3H3C60R40 WYL3H3C80R40 |
|---|---|
| TYPE | WYL3H type |
| Certification | |
| Rating | 440VAC |
| Input | 4VDC~32VDC 90VAC~240VAC |
| Output | 440VAC |
| Capacity | 10A 15A 20A 25A 30A 40A 50A 60A 80A |
Specifications and Features
These product series are economic SSR types. The product height has been reduced by approximately 10mm compared with that of other products where the design of the protective cover and the external view have been made in a more sophisticated style. This product featuring electric and environmental resistance reinforced by using highly reliable parts carries a capacity of AC90~480V, 10-80A. It is an economic type SSR equipped with LED according to input control.
