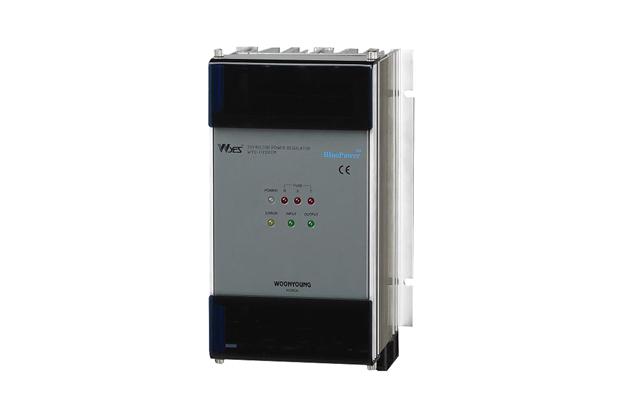

Model No | WYU-CG25TM WYU-CG40TM WYU-CG60TM WYU-CG80TM WYU-CG100TM WYU-CG150TM WYU-CG200TM WYU-CG250TM WYU-CG300TM WYU-CG350TM WYU-CG400TM WYU-CG500TM |
---|---|
TYPE | CAP-TPR |
Certification | |
Rating | 220VAC |
Input | 4VDC~32VDC 90VAC~260VAC |
Output | 220VAC |
Capacity | 25A 40A 60A 80A 100A 150A 180A 200A 250A 300A 350A 400A 500A |
Specifications and Features
• The fuse attached to the each power line prevents of damage the load or a condenser.
• It is planned to make switching transient, inrush current or voltage decrease markedly by zero voltage turn-on and zero current turn-off.
• when input line and fuse are disconnected, the output would be limited automatically for preventing the load safely.
• The fan control circuit is installed. Therefore it extends the fan life by operating on 56℃ of heat sinks and stops before 45℃.
• When it is over 80℃, Abnormal out contact will be operating and stop working by installing the circuit for overheating on heat sinks and SCR module.
